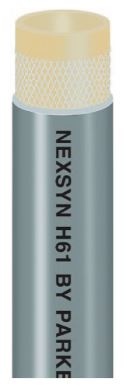

PVC Industrial Hoses | Parker | NEXSYN H61 EDPM/TPV Hose | 715 Series

Nexsyn-H61-715

Series 715 hose is extruded to close tolerances using specially designed thermoplastic vulcanizate (TPV) materials that perform like EDPM rubber. The mechanical and recovery properties are comparable to most vulcanized elastomers and superior to most thermoplastic elastomers. Series 715 is 25-35% lighter than PVC and rubber hose of the same dimensions, handles higher operating temperatures than PVC hose and maintains flexibility at cold temperatures. This highly durable hose is resistant to flex fatigue, ozone and ultraviolet light, and has excellent resistance to a wide range of mild acids, alkalis, chemicals and deionized water, The opaque cover inhibits algae grwowth.



TUBE Natural EDPM/TPV
REINFORCEMENT Multiple textile plies
COVER Gray EDPM/TPVM; smooth finish
TEMPERATURE RANGE

-75°F to 180°F (-60°C to 82°C)

Working pressures are at 68°F (20°C). Higher temperatures reduce the available working pressure.

INDUSTRY STANDARDS
  • Tube material NSF 51 and NSF 61 listed
  • RoHS and EU Directive 2003/11/CC complaint
APPLICATIONS
  • Beverages, potable water; mild acids, alkalis and chemicals
  • Bottled water plants, marine drinking water lines, temporary municipal water connections, dishwasher supply lines
PACKAGING Coils



Part # ID (in) OD (in) Reinf Plies Max Rec WP @ 68°F (psi)
715-06007300 3/8 0.625 2 200
715-08007300 1/2 0.750 2 200
715-10007300 5/8 0.875 2 200
