PVC Industrial Hoses | Parker | PVC General Purpose Hose | GPH Series

    PVC-GPH

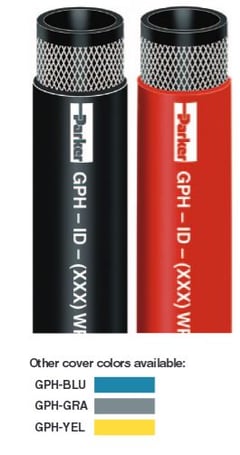

    Series GPH is a versatile, flexible and lightweight hose designed to handle air, mild chemicals and water. The hose construction incorporates a tube that is compatible with light oil mists found in air tool lubricating systems. The multiple plies of textile reinforcement provide strength and flexibility, and the flame resistant cover is also resistant to abrasion, mild chemicals, ultraviolet light and weathering. Series GPH is available in multiple standard colors for color-coded identification. The hose construction is electrically nonconductive with a minimum resistances of one megaohm per inch at 1000 volts DC.



    TUBE Black PVC
    REINFORCEMENT Multiple textile plies
    COVER

    Black, blue, gray, red or yellow PVC; perforated smooth finish
    TEMPERATURE RANGE

    -15°F to 150°F (-25°C to 65°C)

    Working pressures are at 68°F (20°C). Higher temperatures reduce the available working pressure.
    DESIGN FACTOR 4:1
    INDUSTRY STANDARDS Electrically nonconductive with a minimum resistance of one megaohm per inch at 1000 volts DC
    APPLICATIONS
    • Air (including oil mist), mild chemicals, water
    • Agriculture, construction, general industrial
    VACUUM See table
    COMPARE TO Boston Polyforce II; Veyance Pliovic 300
    PACKAGING Coils



    Part # Color ID (in) OD (in) Min Bend Rad (in) Max Rec WP @ 68°F (psi) Perm Cplg Rec* Vacuum Hg (in)
    GPH-3GRA500RL Gray 3/16 0.400 0.6 300 * 25
    GPH-4BLK500RL Black 1/4 0.510 0.8 300 HY 23
    GPH-4BLU500RL Blue 1/4 0.510 0.8 300 HY 23
    GPH-4GRA500RL Gray 1/4 0.510 0.8 300 HY 23
    GPH-4RED500RL Red 1/4 0.510 0.8 300 HY 23
    GPH-4YEL500RL Yellow 1/4 0.510 0.8 300 HY 23
    GPH-5GRA500RL Gray 5/16 0.550 0.8 300 * 23
    GPH-6BLK500RL Black 3/8 0.640 1.0 300/td> HY 23
    GPH-6BLU500RL Blue 3/8 0.640 1.0 300 HY 23
    GPH-6GRA500RL Gray 3/8 0.640 1.0 300 HY 23
    GPH-6RED500RL span style="font-size: 13px;">Red 3/8 0.640 1.0 300 HY 23
    GPH-6YEL500RL Yellow 3/8 0.640 1.0 300 HY 23
    GPH-8BLK500RL Black 1/2 0.800 1.5 300 HY 17
    GPH-8BLU500RL Blue 1/2 0.800 1.5 300 HY 17
    GPH-8GRA500RL/td> Gray 1/2 0.800 1.5 300 HY 17
    GPH-8RED500RL Red 1/2 0.800 1.5 300 HY 17
    GPH-8YEL500RL Yellow 1/2 0.800 1.5 300 HY 17
    GPH-10BLK250 Black 5/8 0.910 2.5 300 HY 10
    GPH-10GRA250 Gray 5/8 0.910 2.5 300 HY 10
    GPH-10RED250 Red 5/8 0.910 2.8 300 HY 10
    GPH-12BLK100 Black 3/4 1.070 2.8 300 HY 10
    GPH-12BLU100 Blue 3/4 1.070 2.8 300 HY 10
    GPH-12GRA100 Gray 3/4 1.070 2.8 300 HY 10
    GPH-12RED100 Red 3/4 1.070 2.8 300 HY 10
    GPH-16BLK100 Black 1 1.330 4.0 250 HY 5
    GPH-16RED100 Red 1 1.330 4.0 250 HY 5

     * Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
