Specialty Industrial Hoses | Parker | ARMADA® Marine Multipurpose, Fuel Fill/Vent and Hardwall Wet Exhaust Hose | SW569 Series



ARMADA-SW569

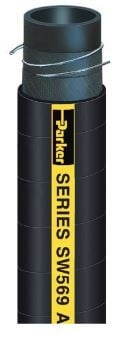

Series SW569 is an extremely versatile suction and discharge hose for diverse applications such as bilge pump intake, discharge and ventilation; cabin heating; coolant and radiator service; oil and fuel systems using biodiesel (to B100 in dedicated service), ethanol and gasoline; lubrication systems; wet exhaust systems; non-potable water systems; and toilet and bath connections. Series SW569 incorporates a dual wire helix that provides full suction capability and kink resistance, and the cover is resistant to oil and ozone. The hose is available in multiple incremental sizes for connection to various sizes of pipe used in the marine industry.


TUBE Black nitrile
REINFORCEMENT Multiple textile plies with dual wire helix
COVER

Black chloroprene; wrapped finish

TEMPERATURE RANGE

-20°F to 212°F (-29°C to 100°C)

DESIGN FACTOR 4:1
INDUSTRY STANDARDS ABYC H-24; NMMA; SAE J1527 A1 and A2 Style R2; SAE J9142 Codes F, VW, NVW; SAE J2006 R2; SAE J20R2 B; SAE J20R4 B; SAE J2045 B; SAE J30R5; ISO 7840 A1; ISO 8469 B1; USCG
APPLICATIONS
  • Biodiesel (to B100 in dedicated service), diesel, ethanol, gasoline, oil
  • Hot exhaust fumes, nonpotable water
  • Marine coolant and fuel/vent systems, wet exhaust
VACUUM Full
COMPARE TO Thermoid 7910 Bellowsflex A
PACKAGING Coils


Part #

ID (in) Reinf Plies
OD (in) Min Bend Rad (in) Max Rec WP (psi) Perm Cplg Rec*
SW569-500 1/2 2 0.890 2 75 *
SW569-625 5/8 2 1.039 2 75 *
SW569-750 3/4 2 1.157 2 75 *
SW569-875 7/8 2 1.307 2 75 *
SW569-1000 1 2 1.409 2 75 *
SW569-1062 1-1/16 2 1.486 2 75 *
SW569-1125 1-1/8 2 1.560 3 75 *
SW569-1250 1-1/4 2 1.661 3 75 *
SW569-1312 1-5/16 2 1.720 3 75 *
SW569-1375 1-3/8 2 1.811 3 75 *
SW569-1500 1-1/2 2 1.906 3 50 *
SW569-1625 1-5/8 2 2.043 4 50 *
SW569-1750 1-3/4 2 2.180 4 50 *
SW569-1875 1-7/8 2 2.354 4 50 *
SW569-2000 2 2 2.480 5 50 *
SW569-2125 2-1/8 2 2.559 5 50
*
SW569-2250 2-1/4 2 2.685 5 50 *
SW569-2375 2-3/8 2 2.830 6 50 *
SW569-2500 2-1/2 2 2.933 7 50 *
SW569-2625 2-5/8 2 3.073 8 50 *
SW569-2750 2-3/4 2 3.213 8 40 *
SW569-2875 2-7/8 2 3.330 8 40 *
SW569-3000 3 2 3.456 9 40 *
SW569-3125 3-1/8 2 3.606 10 40 *
SW569-3250 3-1/4 2 3.708 10 40 *
SW569-3500 3-1/2 2 3.984 10 40 *
SW569-4000 4 2 4.503 12 40 *
SW569-4500 4-1/2 2 5.039 14 40 *
SW569-5000 5 2 5.503 22 40 *
SW569-5500 5-1/2 2 6.059 25 40 *
SW569-6000 6 2 6.582 28 40 *

*Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
