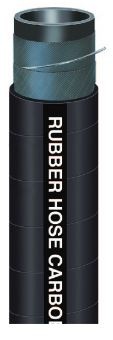

Specialty Industrial Hoses | Parker | CARBOBLUE™ DEF Suction Hose | 7215 Series


CARBOBLUE-7215

Series 7215 is designed for suction and transfer of diesel exhaust fluid (DEF) between storage tanks and dispensers for the on-board selective catalytic reduction (SCR) system of buses, heavy trucks and off-road vehicles used in agricultural, construction and material-handling applications. The hose construction incorporates a specially formulated EPDM tube, a helix wire that provides full suction capability and kink resistance, and an EPDM cover is resistant to abrasion, mild chemicals and ozone.


TUBE Black EPDM, peroxide cured
REINFORCEMENT Multiple textile plies with wire helix
COVER

Black EPDM; wrapped finish

TEMPERATURE RANGE -40°F to 212°F (-40°C to 100°C)
DESIGN FACTOR 3:1
INDUSTRY STANDARDS None applicable
APPLICATIONS
  • DEF, urea
  • Suction and transfer, tank to pump
  • Agriculture, construction, transportation
VACUUM Full
PACKAGING Coils, cartons

Bulk Hose

Part #

ID (in) Reinf Plies
OD (in) Min Bend Rad (in) Max Rec WP (psi) Perm Cplg Rec*
7215-750 3/4 2 1.060 4.5 150 HBL-C

 *Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.

Hose Assemblies

Part #

ID (in) Length (f)
Max Rec WP (psi) Coupling Combination
72153PRBK-48 3/4 4 150 SS Rigid BSPP w/Seal, Each End
72153PRNK-48 3/4 4 150 SS Rigid Male NPT, Each End
