Specialty Industrial Hoses | Parker | Heavy Duty Fire Engine Suction Hose | LW701 Series


    heavy-duty-fire-engine-LW701

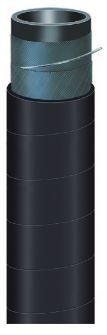

    Series LW701 is a custom made, premium quality heavy duty fire engine suction hose for remote water removal and hydrant connections on fire trucks. The hose construction incorporates a wire helix for full suction capability and kink resistance, and the SBR cover is resistant to abrasion and ozone. Fire engine suction hose is primarily used in 10-foot lengths; Series LW701 is available in specified lengths to a maximum of 100 feet.


    TUBE Black SBR
    REINFORCEMENT Multiple textile plies with wire helix
    COVER

    Black SBR; wrapped finish
    TEMPERATURE RANGE

    -40°F to 180°F (-40°C to 82°C)
    DESIGN FACTOR 4:1
    INDUSTRY STANDARDS NFPA 1901, 1962
    APPLICATIONS
    • Water supply connection; remote water removal
    • Fire suppression apparatus
    VACUUM Full
    PACKAGING Coils, lengths
    COUPLINGS Soft cuffs per customer specifications


    Part #

    		 ID (in) Reinf Plies
    		 OD (in) Min Bend Rad (in) Max Rec WP (psi)
    LW701-2500 2-1/2 2 3.125 15.0 150
    LW701-3000 3 2 3.625 18.0 150
    LW701-3500 3-1/2 2 4.125 21.0 150
    LW701-4000 4 2 4.625 24.0 150
    LW701-4500 4-1/2 3 5.125 27.0 150
    LW701-5000 5 3 5.750 30.0 150
    LW701-6000 6 3 6.750 36.0 150





    How to Order
