Specialty Industrial Hoses | Parker | Corrugated Heavy Duty Fire Engine Suction Hose | LW720 Series


corrugated-heavy-duty-fire-engine-LW720

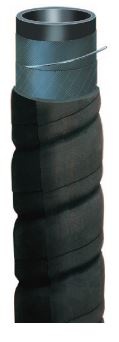

Series L720 is a custom made, premium quality heavy duty fire engine suction hose for remote water removal and hydrant connections on fire trucks. The corrugated hose construction incorporates a wire helix for full suction capability and kink resistance, and the SBR cover is extremely flexible and resistant to abrasion and ozone. Fire engine suction hose is primarily used in 10-foot overall lengths; Series LW720 is available in specified lengths to a maximum of 100 feet.


TUBE Black SBR
REINFORCEMENT Multiple textile plies with wire helix
COVER

Black SBR; corrugated wrapped finish

TEMPERATURE RANGE

-40°F to 180°F (-40°C to 82°C)

DESIGN FACTOR 4:1
INDUSTRY STANDARDS NFPA 1901, 1962
APPLICATIONS
  • Water supply connection; remote water removal
  • Fire suppression apparatus
VACUUM Full
PACKAGING Coils, lengths
COUPLINGS Soft cuffs per customer specifications


Part #

ID (in) Reinf Plies
OD (in) Min Bend Rad (in) Max Rec WP (psi)
SW456-2500 2-1/2 2 3.000 15.0 150
SW456-3000 3 2 3.500 18.0 150
SW456-4000 4 2 4.500 24.0 150
SW456-4500 4-1/2 3 5.125 27.0 150
SW456-5000 5 3 5.688 30.0 150
SW456-6000 6 3 6.688 36.0 150

 *Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
