Specialty Industrial Hoses | Parker | Fire Engine Suction & Discharge Hose | SW456 Series

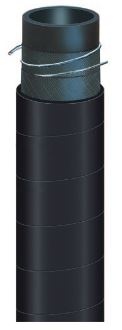

    Fire-Engine-SW456

    Series SW456 is a heavy duty, high pressure fire engine suction and discharge hose for remote water transfer and hydrant connections on fire trucks. The hose construction incorporates a dual wire helix for full suction capability and kink resistance, and the SBR cover is resistant to abrasion and ozone.


    TUBE Black SBR
    REINFORCEMENT Multiple textile plies with dual wire helix
    COVER

    Black SBR; wrapped finish
    TEMPERATURE RANGE

    -40°F to 180°F (-40°C to 82°C)
    DESIGN FACTOR 4:1
    INDUSTRY STANDARDS None applicable
    APPLICATIONS
    • Water supply connection; remote water removal
    • Fire suppression apparatus
    VACUUM Full
    PACKAGING Coils


    Part #

    		 ID (in) Reinf Plies
    		 OD (in) Min Bend Rad (in) Max Rec WP (psi) Perm Cplg Rec*
    SW456-1000 1 2 1.500 4.0 300 *
    SW456-1500 1-1/2 2 2.000 6.0 300 *
    SW456-2000 2 2 2.500 8.0 300 *
    SW456-2500 2-1/2 2 3.100 10.0 300 *
    SW456-3000 3 2 3.580 12.0 300 *
    SW456-4000 4 2 4.620 18.0 300 *
    SW456-6000 6 2 6.740 30.8 150 *

     *Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
