Specialty Industrial Hoses | Parker | Fuel Line/Vapor Emission Hose | 395 Series

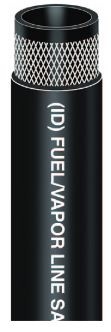

    Fuel-Line-395

    Series 395 is a fuel line/vapor emission hose for refined fuels such as biodiesel (to B20 in dedicated and non-dedicated service), diesel, ethanol and gasoline. The hose is flexible for easy routing in and around small engines and small engine compartments, and the cover is resistant to abrasion, oil and weathering.

    Note: Do not use in marine fuel applications. Refer to Series 7165.


    TUBE Black nitrile
    REINFORCEMENT Multiple textile plies
    COVER

    Black chloroprene, smooth finish
    TEMPERATURE RANGE -40°F to 257°F (-40°C to 125°C)
    DESIGN FACTOR 5:1
    INDUSTRY STANDARDS SAE J30R7
    APPLICATIONS
    • Low pressure fuel lines, vapor emission service
    • Biodiesel (to B20 in dedicated and non-dedicated service), diesel, ethanol, gasoline
    • Agricultural equipment, autos, buses, construction equipment, off-road equipment
    VACUUM 24" Hg (3/16" through 3/8" ID); 10" Hg (1/2" ID)
    COMPARE TO Thermoid Fueling, Vapor Emission and Crankcase Ventilation SAE 30R7
    PACKAGING Coils


    Part #

    		 ID (in) Reinf Plies
    		 OD (in) Min Bend Rad (in) Max Rec WP (psi) Perm Cplg Rec*
    39553 3/16 2 0.406 2.0 75 *
    39550 1/4 2 0.500 2.0 50 *
    39551 5/16 2 0.563 3.0 50 *
    39552 3/8 2 0.625 3.5 50 *
    39554 1/2 2 0.781 4.0 35 *

     *Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
