Specialty Industrial Hoses | Parker | Hardwall Furnace Door Coolant Hose | 7386 Series


Hardwall-Furnace-Door-7386

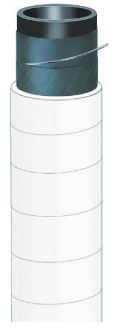

Series 7386 is an industrial cooling/water hose for furnaces in foundries, glassworks, steel mills and other worksites that require a hose to withstand extreme external temperatures. The hose construction incorporates a wire helix that provides full suction capability and kink resistance, and a durable, heat resistant aramid cover that withstands steel splashes and external heat radiation to 572°F (300°C). Series 7386 is available in 200-foot continuous lengths.

TUBE Black SBR
REINFORCEMENT Multiple textile plies with wire helix
COVER

Off-white aramid fabric, wrapped finish

TEMPERATURE RANGE

Internal: -20°F to 212°F (-40°C to 100°C)

External: to 572°F (300°

DESIGN FACTOR 4:1
INDUSTRY STANDARDS None applicable
APPLICATIONS
  • Hot water
  • Furnaces and industrial cooling systems
  • Foundries, glassworks, steel mills
VACUUM Full
COMPARE TO Thermoid Furnace Door
PACKAGING Coils


Part #

ID (in) Reinf Plies
OD (in) Min Bend Rad (in) Max Rec WP (psi) Perm Cplg Rec*
7386-0500 1/2 2 0.870 3.0 150 *
7386-0750 3/4 2 1.143 4.0 150 *
7386-1000 1 2 1.460 5.0 150 *
7386-1250 1-1/4 2 1.713 6.0 150 *
7386-1500 1-1/2 2 1.938 7.0 150 *
7386-2000 2 2 2.520 8.0 150 *

 *Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.



How to Order

  • Visit One of Our ParkerStores
  • Click on the quote button below.
 ASK QUESTION!  REQUEST QUOTE





IMPORTANT!
Hose and hose fittings series must be correctly matched. Using any fittings other than those specifically designated by the hose manufacturer for use with each specific hose can lead to hose assembly failure. Hose assembly failures have lead to damage, injury and death.

California Prop 65 Warning WARNING: These products can expose you to chemicals including lead and/or DEHP and/or carbon black, which are known to the State of California to cause cancer or birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov
