Specialty Industrial Hoses | Parker | Marine Softwall Wet Exhaust Hose | SS269/ES269 Series



Marine-Softwall-Wet-Exhaust-SS269-ES269

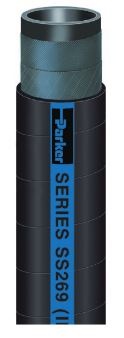

Series SS269/ES269 is a heavy-duty softwall marine exhaust hose for use as a flexible connection to circulate, transfer and cool engine water and expended hot gases in discharge lines, heat exchangers and wet exhaust systems. The hose is easier to install and absorbs more vibration than rigid pipe or tubing. The cover is resistant to oil and ozone, and is available in multiple incremental sizes for connection to various sizes of pipe used in the marine industry.


TUBE Black nitrile
REINFORCEMENT Multiple textile plies
COVER

Black nitrile; wrapped finish
TEMPERATURE RANGE

-40°F to 200°F (-40°C to 93°C)
DESIGN FACTOR 4:1
INDUSTRY STANDARDS ABYC; USCG/SAE J2006R1
APPLICATIONS
  • Hot exhaust fumes; oil, nonpotable water
  • Marine coolant systems, wet exhaust
VACUUM Not recommended
PACKAGING Coils


Part # ID (in) Reinf Plies
 OD (in) Max Rec WP (psi) Perm Cplg Rec*
SS269-1000 1 2 1.440 200 *
SS269-1125 1-1/8 2 1.566 200 *
SS269-1250 1-1/4 2 1.788 200 *
SS269-1312 1-5/16 2 1.846 200 *
SS269-1375 1-3/8 2 1.913 200 *
SS269-1500 1-1/2 2 2.035 200 *
SS269-1625 1-5/8 2 2.189 200 *
SS269-1750 1-3/4 2 2.283 200 *
SS269-1875 1-7/8 2 2.409 200 *
SS269-2000 2 4 2.567 200 *
SS269-2125 2-1/8 4 2.692 200
*
SS269-2250 2-1/4 4 2.819 200 *
SS269-2375 2-3/8 4 2.964 200 *
SS269-2500 2-1/2 4 3.067 200 *
SS269-2625 2-5/8 4 3.200 200 *
SS269-2750 2-3/4 4 3.307 200 *
SS269-2875 2-7/8 4 3.425 200 *
SS269-3000 3 4 3.660 200 *
SS269-3500 3-1/2 4 4.145 200 *
SS269-4000 4 4 4.629 200 *
SS269-4500 4-1/2 4 5.145 200 *
SS269-5000 5 6 5.850 200 *
SS269-5562 5-9/16 6 6.410 200 *
SW569-6000 6 6 6.898 40 *

*Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.


Series ES269 - Custom Made Hose

Part # ID (in) OD (in) Reinf Plies Max Rec WP (psi) Max Length (ft)
ES269-6625 6-5/8 190.5 6 200 100
ES269-7000 7 200.0 6 200 100
ES269-8000 8 225.0 6 150 50
ES269-8625 8-5/8 240.9 6 150 50
