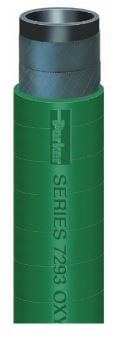

Specialty Industrial Hoses | Parker | Oxygen Charging Hose | 7293 Series


Oxygen-Charging-7293

Series 7293 is designed for high pressure oxygen lancing and scarfing applications in foundries and steel mills. The hose construction incorporates flame and oil resistant tube and cover compounds. The green cover is resistant to abrasion and weathering, and color-coded for easy and quick identification for oxygen service. The tube is cleaned and the ends are capped at the factory to prevent contamination. Series 7293 is available in 200-foot continuous lengths.



TUBE Black chloroprene
REINFORCEMENT Multiple textile plies
COVER

Green chloroprene; wrapped finish

TEMPERATURE RANGE -22°F to 176°F (-30°C to 80°C)
DESIGN FACTOR 4:1
INDUSTRY STANDARDS None applicable
APPLICATIONS
  • High pressure oxygen
  • Lancing, scarfing
  • Foundries, steel mills
VACUUM Not recommended
PACKAGING Coils


Part #

ID (in) OD (in) Reinf Plies Min Bend Rad (in) Max Rec WP (psi) Perm Cplg Rec*
7293-0500 1/2 0.992 4 3.5 500 *
7293-0750 3/4 1.276 4 3.5 500 *
7293-1000 1 1.528 4 4.5 500 7661
7293-1250 1-1/4 1.930 4 5.0 500 *
7293-1500 1-1/2 2.174 4 7.0 500 *
7293-2000 2 2.764 4 14.0 500 7661





How to Order

  • Visit One of Our ParkerStores
  • Click on the quote button below.
 ASK QUESTION!  REQUEST QUOTE





IMPORTANT!
Hose and hose fittings series must be correctly matched. Using any fittings other than those specifically designated by the hose manufacturer for use with each specific hose can lead to hose assembly failure. Hose assembly failures have lead to damage, injury and death.

California Prop 65 Warning WARNING: These products can expose you to chemicals including lead and/or DEHP and/or carbon black, which are known to the State of California to cause cancer or birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov
