Specialty Industrial Hoses | Parker | Softwall Furnace Door Coolant Hose | 7385 Series

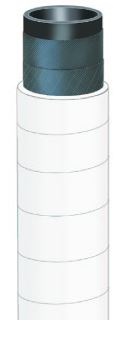

Softwall-Furnace-Door-7385

Series 7385 is an industrial cooling/water hose for furnaces in foundries, glassworks, steel mills and other worksites that require a hose to withstand extreme external temperatures. The durable, heat resistant aramid cover withstands steel splashes and external heat radiation to 572°F (300°C). The hose construction is electrically nonconductive with a minimum resistance of one megaohm per inch at 1000 volts DC. Series 7385 is available in 200-foot continuous lengths.

Note: The user must determine if the hose is suitable for applications subject to electrical hazard.

TUBE Black SBR
REINFORCEMENT Multiple textile plies
COVER

Off-white aramid fabric, wrapped finish

TEMPERATURE RANGE

-20°F to 212°F (-40°C to 100°C)

External: to 572°F (300°C)

DESIGN FACTOR 4:1
INDUSTRY STANDARDS None applicable
APPLICATIONS
  • Hot water
  • Furnaces and industrial cooling systems
  • Foundries, glassworks, steel mills
VACUUM Not recommended
COMPARE TO Kuriyama Furnace Door Coolant; Veyance Plicord Furnace Door
PACKAGING Coils


Part #

ID (in) Reinf Plies
OD (in) Min Bend Rad (in) Max Rec WP (psi) Perm Cplg Rec*
7385-0500 1/2 2 0.969 5.0 150 *
7385-0750 3/4 2 1.260 6.0 150 *
7385-1000 1 2 1.442 8.0 150 *
7385-1250 1-1/4 2 1.718 9.0 150 *
7385-1500 1-1/2 2 2.135 12.0 150 *
7385-2000 2 4 2.679 24.0 150 *

 *Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
