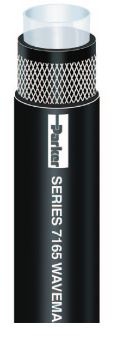

WAVEMASTER-7165

Series 7165 is a premium, low permeation fuel tank feed and vent hose for refined fuels such as biodiesel (to B100 in dedicated and non-dedicated service), alcohol blended fuels, diesel, ethanol and gasoline in marine applications. The hose incorporates a thermoplastic barrier to resist fuel permeation and the cover is resistant to abrasion, oil and weathering. Series 7165 is flexible for easy routing in engine comparments and as a feed line to fuel tanks where liquid fuel is continuously in the hose under normal conditions.


TUBE Translucent Nylon
REINFORCEMENT Multiple textile plies
COVER

Black nitrile/PVC; smooth finish

TEMPERATURE RANGE

-20°F to 212°F (-29°C to 100°C)

DESIGN FACTOR 4:1
INDUSTRY STANDARDS ABYC, CARB, CE, EPA, ISO 7840 A1, NMMA, SAE J1527 A1-15, USCG A1
APPLICATIONS
  • Biodiesel (to B100 in dedicated and non-dedicated service), diesel, ethanol, gasoline, oil
  • Marine fuel/vent systems
VACUUM Not recommended
PACKAGING Reels
COUPLINGS ABYC compliant


Part # ID (in) Reinf Plies
OD (in) Min Bend Rad (in) Max Rec WP (psi) Perm Cplg Rec*
7165-25250 1/4 2 0.536 2.5 100 *
7165-31250 5/16 2 0.611 2.5 100 *
7165-38250 3/8 2 0.681 2.5 100 *
7165-50250 1/2 2 0.821 4.5 100 *
7164-63250 5/8 2 1.000 4.5 75 *

*Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
