Dry Cement Hose | Parker SS135 Series

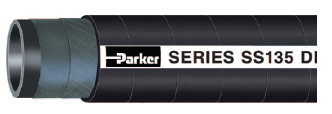

Dry Cement Hose - 1/8" SBR Tube - Series SS135


Series SS135 is a lightweight, low pressure discharge hose for dry abrasive materials such as cement and powders. The static dissipating 1/8" SBR tube provides abrasion resistance and the SBR cover is resistant to abrasion, cuts, scuffs and weathering.

Parker Dry Cement Hose Sizes & Specifications

  • Tube: 1/8" Black SBR; static dissipating
  • Reinforcement: Multiple textile plies
  • Cover: Black SBR; wrapped finish
  • Temp. Range: -40°F to +180°F (-40°C to +83°C)
  • Brand Method: Black text on white stripe
  • Brand Example: PARKER SERIES SS135 DRY CEMENT DISCHARGE 65 PSI WP MADE IN USA
  • Design Factor: 4:1
  • Industry Standards: None applicable
  • Applications:  Abrasive materials, dry cement, lime, powders, silica.  Bulk transport trucks.  Construction, general industrial
  • Vacuum: Not recommended
  • Compare to: Boston Lynx HD; Gates Dry Cement Delivery; Thermoid Transporter; Veyance Black Softwall
  • Packaging: Coils

Part Number

ID

Reinf Plies

OD

Approx Wt

Max Rec WP

Std Pack Qty

in

mm

in

mm

lbs/ft

kg/ft

psi

bar

ft

SS135-4000

4

101.6

2

4.500

114.3

1.49

0.68

65

4.5

100

SS135-4500

4-1/2

114.3

2

5.000

127.0

1.71

0.78

65

4.5

100

SS135-5000

5

127.0

2

5.500

139.7

1.90

0.86

65

4.5

100

SS135-6000

6

152.4

2

6.560

166.6

2.32

1.05

65

4.5

100




WARNINGS! „Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.

„
