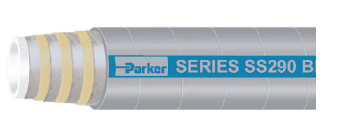

Beverage and Potable Water Discharge Hose | Parker SS290 Series

Beverage & Potable Discharge Hose - Nitrile Tube - FDA, PMO, USDA, 3-A - Series SS290

Note: As of November 2016, the Series SS290 Beverage & Potable Water Discharge Hose has been discontinued by Parker. The SW430 Food Suction Hose (150 psi) and the SW640 Titanflex Food Suction Hose (200-250 psi) are recommended as a replacement.

Series SS290 is a high pressure discharge hose designed to handle beverages, liquids and potable water in a variety of transfer applications. The hose is manufactured using polished stainless steel mandrels for an ultra-smooth, bacteria-free tube that will not impart taste or odor. The tube cleans easily with 10% alkali bath, hot water, or open-end low pressure steam to 15 psi (1.0 bar). The lightweight construction provides flexibility for ease of handling. The natural rubber cover is resistant to abrasion, mild chemicals and ozone.

Parker Beverage & Potable Water Discharge Hose Sizes & Specifications

  • Tube: White nitrile
  • Reinforcement: Multiple textile plies
  • Cover: Gray natural rubber; wrapped finish
  • Temp. Range: -20°F to +225°F (-29°C to +107°C)
  • Brand Method: Gray text on blue stripe
  • Brand Example: PARKER SERIES SS290 BEVERAGE & POTABLE WATER HOSE MEETS FDA/3-A/USDA/PMO REQUIREMENTS (3-A LOGO) 250 PSI WP MADE IN USA
  • Design Factor: 4:1
  • Industry Standards: FDA, PMO, USDA, 3-A
  • Applications:  Beverages, liquids, milk, potable water.  In-plant and tank transfer.  Delivery, transport
  • Vacuum: Not recommended
  • Packaging: Coils

Part Number

ID

Reinf
Plies

OD

Approx Wt

Max Rec WP

Std Pack
Qty

in

mm

in

mm

lbs/ft

kg/ft

psi

bar

ft

SS290-1500

1-1/2

38.1

4

2.125

54.0

0.82

0.37

250

17.2

100

SS290-2000

2

50.8

4

2.625

66.7

1.10

0.50

250

17.2

100

SS290-2500

2-1/2

63.5

4

3.125

79.4

1.39

0.63

250

17.2

100

SS290-3000

3

76.2

4

3.625

92.1

1.64

0.74

250

17.2

100

SS290-4000

4

101.6

4

4.625

117.5

2.21

1.00

250

17.2

100




WARNINGS! „Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
NOTE
: Do not for use in applications where a static charge may develop unless externally grounded.

„
