Steam Industrial Hoses | Parker | DRAGON BREATH® II Chlorobutyl Barber Pole Steam Hose (Non-Skive E-Z Crimp) | 7285 Series

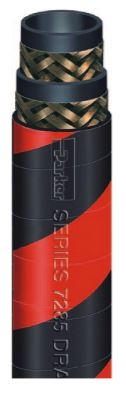

DRAGON-BREATH-II-7285


Series 7285 is a distinctive hose designed for long-lasting steam service - one of the toughest applications for hose, where the hot-cold/wet-dry cycling attacks rubber compounds externally as well as internally. The hose construction incorporates a premium, high-performance chlorobutyl tube which resists heat and popcorning, and a wire braid reinforcement for crush-resistant durability, kink resistance, and a path to conduct a static electrical charge to ground. The EPDM cover resists abrasion, cracking, hardening and ozone, and the red/black barber pole cover provides color-coded identification from all angles and great distances. Series 7285 is qualified with Parker non-skive crimp couplings for easy and quick assembly fabrication as well as maintenance-free service.


TUBE Black chlorobutyl
REINFORCEMENT Multiple wire braids
COVER

Black and red EPDM in alternating spirals; perforated wrapped finish

TEMPERATURE RANGE

-40°F to 406°F saturated steam/450F superheated steam (-40°C to 208°C saturated steam/232°C superheated steam)

DESIGN FACTOR 20:1
INDUSTRY STANDARDS ISO 6134 Type 2
APPLICATIONS
  • Saturated and superheated steam
  • Cleaning containment vessels and manufacturing equipment; cleaning and heating process equipment
  • Manufacturing and processing plants, refineries
VACUUM Not recommended
COMPARE TO Boston Concord Standard Steam - Spiral Stripe, Steam Slayer; Goodall N2711 Inferno Steam
PACKAGING Cartons


Part #

ID (in) Reinf Braids
OD (in) Min Bend Rad (in) Max Rec WP (psi) Perm Cplg Rec*
7285-502 1/2 2 1.031 7.0 261 70
7285-752 3/4 2 1.284 9.5 261 CS
7285-1002 1 2 1.546 12.0 261 CS

 *Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.

WARNINGS

Water changes to hot water and phases of steam when subjected to heat and pressure. The greater the pressure, the higher the temperature required to acheive and maintain a steam phase. If steam escapes, dangerous quantities may be released very suddenly. Exposure to hot water, low pressure steam and high pressure steam may cause severe scalding and fatal burns.

Use only hoses designated for steam service for steam applications.

Prior to use with detergents or rust inhibitors, refer to the chemical guide in the Parker Industrial Hose catalog.

Drain steam hose after each use to reduce the possibility of hose popcorning while in service.
