Steam Industrial Hoses | Parker | Hydrocarbon Oil Resistant Drain Hose (Non-Skive E-Z Crimp) | 7200 Series

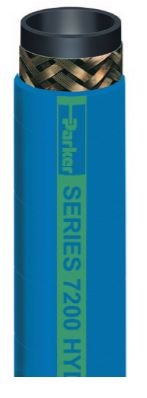

Series 7200 is a hydrocarbon drain hose designed to evacuate hot, liquefied residue from steam cleaning operations. The high temperature, oil-resistant tube and cover withstand attack by steam vapors and petroleum-based runoff. The wire braid reinforcement provides crush-resistant durability, kink resistance and a path to conduct a static electrical charge to ground. The vivid blue chloroprene cover is resistant to oil and weathering, and provides color-coded identification. Series 7200 is qualified with Parker non-skive crimp couplings for easy and quick assembly fabrication as well as maintenance-free service.
Note: For large bore hydrocarbon drain hose, see Series 7200LB.
|ID (in)||Reinf Braids
||OD (in)||Min Bend Rad (in)||Max Rec WP (psi)||Perm Cplg Rec*|
*Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
Use only hoses designated for steam service for steam applications.
