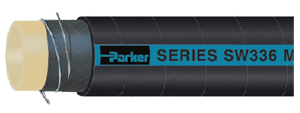

Parker SW336 Series Hose General Description

Series SW336 is a durable material suction and discharge hose for highly abrasive materials.
The 1/4" natural rubber tube provides abrasion resistance, and the dual wire helix provides
full suction capability and kink resistance.

Parker SW336 Series Hose Sizes & Specifications

Parker SW336 Series Suction and Vacuum Hose Tube: 1/4" Tan natural rubber
Reinforcement: Multiple textile plies with dual wire helix
Cover: Black SBR; wrapped finish
Temp. Range: -40°F to +150°F (-40°C to +66°C)
Brand Method: Black text on blue stripe
Brand Example: PARKER SERIES SW336 MATERIAL HANDLING HOSE XXX PSI WP
1/4" TUBE MADE IN USA
Design Factor: 4:1
Industry Standards: None applicable
Applications: Abrasive materials, debris construction, general industrial, mining
Vacuum: Full
Compare to: Boston Sabertooth; Diversiflex; Gates 688SB; Veyance Plicord HD Vacuum
Packaging: Coils

Part Number ID Reinf
Plies
OD Approx Wt Min Bend Rad
Bend
Rad
Max WP Std Pack
Qty
(ft)
(in) (mm) (in) (mm) (lbs/ft) (kg/ft) (in) (mm) (psi) (bar) Pack
Qty
SW336-3000 3 76.2 2 3.938 100.0 2.69 1.22 12.0 304.8 125 8.6 100
SW336-4000 4 101.6 2 5.000 127.0 4.00 1.81 18.0 457.2 125 8.6 100
SW336-5000 5 127.0 2 6.000 152.4 5.35 2.43 25.0 635.0 110 7.6 100
SW336-6000 6 152.4 2 7.063 179.4 7.09 3.22 30.0 762.0 110 7.6 100
