Parker SW409 Series Hose

Sand Recovery Hose - Series SW409

Suction / Vacuum 3/16" Natural Rubber Tube Hose

Series SW409 is a heavy duty suction and discharge hose for transfer and recovery of sand and severely abrasive materials. The static dissipating 3/16" natural rubber tube provides abrasion resistance, and the dual wire helix provides full suction capability and kink resistance. The SBR cover is resistant to abrasion, cuts, scuffs and weathering.


Parker SW409 Hose Sizes & Specifications

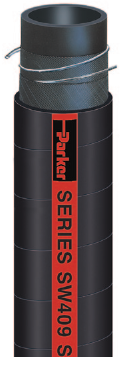

Parker SW409 Hose
  • Tube:  3/16" Black natural rubber; static dissipating

  • Reinforcement:  Multiple textile plies with dual wire helix

  • Cover:  Black SBR; wrapped finish

  • Temp. Range:  -40°F to +150°F (-40°C to +66°C)

  • Brand Method:  Black text on red stripe

  • Brand Example:  PARKER SERIES SW409 SAND RECOVERY HOSE XXX PSI WP MADE IN USA

  • Design Factor:  4:1

  • Industry Standards:  None applicable

  • Applications:   Abrasive materials, debris, sand, construction, general industrial, mining, sand clean-up/recovery

  • Vacuum:  Full

  • Packaging:  Coils



Part
Number

ID
(in)

ID
(mm)

Reinf
Plies

OD
(in)

OD
(mm)

Approx
Wt
(lbs/ft)

Approx
Wt
(kg/ft)

Min Bend Rad (in)

Min Bend Rad (mm)

Max
Rec WP
(psi)

Max
Rec WP
(bar)

Std Pack Qty (ft)

Stock
Status
**

SW409-2000

2

50.8

2

2.750

69.9

1.41

0.64

6.0

152.4

200

13.8

100

N

SW409-3000

3

76.2

2

3.750

95.3

2.42

1.10

12.0

304.8

175

12.1

100

N

SW409-4000

4

101.6

2

4.750

120.7

3.16

1.43

16.0

406.4

150

10.3

100

Y

SW409-5000

5

127.0

2

5.813

147.6

4.25

1.93

20.0

508.0

100

6.9

100

N

SW409-6000

6

152.4

2

6.813

173.0

5.30

2.40

24.0

609.6

100

6.9

100

Y



** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
