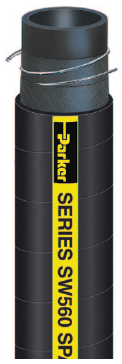

Parker SW560 Series Hose

HOT AIR BLOWER HOSE - Series SW560

Hot Air Blower Hose

Series SW560 is a lightweight, medium pressure hot air blower hose designed for bulk loading/unloading of dry materials in plants or transport vehicles. The hose transfers hot air from a compressor to the storage bin/cargo bay to propel bulk products. The hose construction incorporates a tube that features a temperature rating of 350°F (177°C) and resists drying out. The dual wire helix provides full suction capability, kink resistance,

flexibility for ease of handling, and a path to conduct a static electrical charge to ground. The cover resists abrasion, heat, and ozone.

NOTE: For larger diameter hoses, refer to Series EW360.


Parker SW560 Hose Sizes & Specifications

Parker SW560 Hose
  • Tube:  Black EPDM

  • Reinforcement:  Multiple textile plies with dual wire helix

  • Cover:  Black EPDM; wrapped finish

  • Temp. Range:  -40°F to +350°F (-40°C to +177°C)

  • Brand Method:  Black text on yellow stripe

  • Brand Example:  PARKER SERIES  SW560 SPARTANTM HOT AIR BLOWER HOSE

  • Design Factor: 4:1

  • Applications: Hot air blower systems, in-plant transfer; delivery, loading/unloading, general industrial, transportation

  • Compare to:  Eaton Boston Wildcat Hot Air; Gates Hot Air Blower; Veyance Plicord Torrid Air

  • Vacuum:  Full

  • Packaging:  Coils


Part
Number

ID
(in)

ID
(mm)

Reinf
Plies

OD
(in)

OD
(mm)

Approx
Wt
(lbs/ft)

Approx
Wt
(kg/ft)

Min Bend Rad (in)

Min Bend Rad (mm)

Max
Rec WP
(psi)

Max
Rec WP
(bar)

Perm
Cplg
Rec

*

Std Pack Qty (ft)

Stock
Status
**

SW560-2000

2

50.8

2

2.450

62.2

0.89

0.40

6.0

152.4

125

8.6

*

100

N

SW560-3000

3

76.2

2

3.480

88.4

1.48

0.67

12.0

304.8

125

8.6

*

100

Y

SW560-4000

4

101.6

2

4.480

113.8

1.99

0.90

16.0

406.4

100

6.9

*

100

Y



* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.

** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
