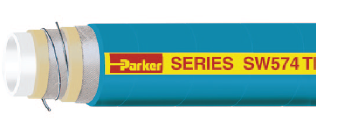

    TITANFLEX FEP Chemical & Food Suction Hose - FDA, USDA, 3-A - Series SW574


    Series SW574 is a flexible, lightweight, premium quality suction and discharge hose designed for use in high temperature, high-pressure chemical, and purity applications. The fluorinated ethylene propylene (FEP) tube is compatible with 99.5% of commonly used chemicals and solvents, as well as food, pharmaceutical, and sanitary materials. The tube also has an elevated temperature rating of 300°F (149°C), will not leach into and contaminate the product being conveyed, and meets FDA, USDA, and 3-A requirements. The special construction incorporates a dual wire helix that provides full suction capability, superior force-to-bend and kink resistance, and a path to conduct a static electrical charge to ground. The EPDM cover is resistant to abrasion, mild chemicals, and ozone.

    Parker Chemical & Food Suction Hose Sizes & Specifications

    • Tube: White fluorinated ethylene propylene (FEP)
    • Reinforcement: Multiple textile plies with dual wire helix
    • Cover: Blue EPDM; wrapped finish
    • Temp. Range: -40°F to +300°F (-40°C to +149°C)
    • Brand Method: Red text on yellow stripe
    • Brand Example: PARKER SERIES SW574 TITANFLEX® FEP CHEMICAL/FOOD QUALITY HOSE XXX PSI MEETS FDA/3-A/USDA REQUIREMENTS (3-A LOGO) MADE IN USA
    • Design Factor: 4:1
    • Industry Standards: FDA, USDA, 3-A
    • Applications: Non-fatty and non-oily foods and liquids, potable water, sanitary products. Acids, chemicals, solvents. In-plant and tank transfer, delivery, transport
    • Vacuum: Full
    • Packaging: Coils

    Part Number

    ID

    Reinf
    Plies

    OD

    Approx Wt

    Min Bend Rad

    Max Rec WP

    Std Pack Qty

    in

    mm

    in

    mm

    lbs/ft

    kg/ft

    in

    mm

    psi

    bar

    ft

    SW574-750

    3/4

    19.1

    2

    1.281

    32.5

    0.48

    0.22

    2.0

    50.8

    400

    27.6

    100

    SW574-1000

    1

    25.4

    2

    1.469

    37.3

    0.52

    0.24

    2.5

    63.5

    400

    27.6

    100

    SW574-1500

    1-1/2

    38.1

    2

    2.031

    51.6

    0.81

    0.37

    4.0

    101.6

    300

    20.7

    100

    SW574-2000

    2

    50.8

    2

    2.531

    64.3

    1.11

    0.50

    6.5

    165.1

    300

    20.7

    100

    SW574-3000

    3

    76.2

    2

    3.688

    93.7

    2.17

    0.98

    12.0

    304.8

    200

    13.8

    100

    SW574-4000

    4

    101.6

    2

    4.688

    119.1

    3.03

    1.37

    18.0

    457.2

    200

    13.8

    100




    WARNINGS! „It is the responsibility of the user to determine if the hose is suitable for the application. Most chemical resistance guides are based on temperatures of 70°F (21°C). Elevated temperatures can change the chemical resistance ratings. Many chemicals will become more aggressive as temperatures increase, reducing the ability of hose compounds to withstand them. Contact Parker for chemical compatibility data at elevated temperatures. If no data exists, users are required to perform compatibility testing at the desired temperature. „ At operating temperatures of 125°F (52°C) and above, only permanently attached couplings should be installed. At any operating temperature, couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines. „ Do not use with internally expanded couplings. Refer to chemical hoses that incorporate a MXLPE tube.


    Note: „Refer to the Safety and Technical section of this catalog for safety, handling and use information. Refer to the Chemical Guide section of this catalog to determine compatibility with specific chemicals.
