TitanFlex Food Suction Hose | Parker SW630 Series

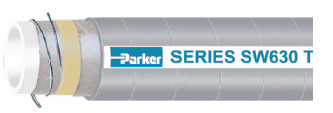

TITANFLEX Food Suction Hose - Chlorobutyl Tube - FDA, PMO, USDA, 3-A - Series SW630


Series SW630 is a suction and discharge hose designed to handle non-fatty and non-oily foods, liquids, sanitary products, and potable water in a variety of transfer applications. The hose is manufactured using polished stainless steel mandrels for an ultra-smooth tube that will not impart taste or odor and is resistant to bacteria and microbes. The tube cleans easily with 10% alkali bath, hot water, or open-end low-pressure steam to 15 psi (1.0 bar). The lightweight construction incorporates a dual wire helix that provides full suction capability, kink resistance, and a path to conduct a static electrical charge to ground. The EPDM cover is resistant to abrasion, mild chemicals, and ozone.

Parker Food Suction Hose Sizes & Specifications

  • Tube: White chlorobutyl
  • Reinforcement: Multiple textile plies with dual wire helix
  • Cover: Gray EPDM; wrapped finish
  • Temp. Range: -40°F to +225°F (-40°C to +107°C)
  • Brand Method: Blue text on white stripe
  • Brand Example: PARKER SERIES SW630 TITANFLEX® CHLOROBUTYL FOOD SUCTION MEETS FDA/3-A/USDA/PMO REQUIREMENTS (3-A LOGO) 200 PSI WP MADE IN USA
  • Design Factor: 4:1
  • Industry Standards: FDA, PMO, USDA, 3-A
  • Applications:  Non-fatty and non-oily foods, liquids, milk, potable water, sanitary products.  In-plant and tank transfer.  Delivery, transport
  • Vacuum: Full
  • Packaging: Coils

Part Number

ID

Reinf
Plies

OD

Approx Wt

Min Bend Rad

Max Rec WP

Std Pack Qty

in

mm

in

mm

lbs/ft

kg/ft

in

mm

psi

bar

ft

SW630-1500

1-1/2

38.1

2

2.125

54.0

0.98

0.44

4.5

114.3

200

13.8

100

SW630-2000

2

50.8

2

2.641

67.1

1.37

0.62

6.0

152.4

200

13.8

100

SW630-2500

2-1/2

63.5

2

3.156

80.2

1.77

0.80

7.5

190.5

200

13.8

100

SW630-3000

3

76.2

2

3.703

94.1

2.23

1.01

9.0

228.6

200

13.8

100

SW630-4000

4

101.6

2

4.734

120.3

3.18

1.44

12.0

304.8

200

13.8

100



WARNINGS! „Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
