Corrugated Food Suction Hose | Parker SWC432 Series

Corrugated Food Suction Hose - Nitrile Tube - FDA, PMO, USDA, 3-A - Series SWC432

Note: As of November 2016, the Series SWC432 Corrugated Food Suction Hose has been discontinued by Parker. The SW430 Food Suction Hose (150 psi) and SW640 TITANFLEX Food Suction Hose (200 - 250 psi) are recommended as a replacement.

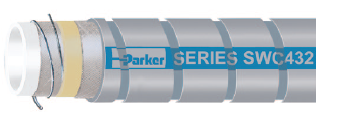

Series SWC432 is an extremely flexible suction and discharge hose designed to handle fatty and oily foods, liquids, sanitary products, and potable water in a variety of transfer applications. The hose is manufactured using polished stainless steel mandrels for an ultra-smooth, bacteria-free tube that will not impart taste or odor. The tube cleans easily with 10% alkali bath, hot water, or open-end low-pressure steam to 15 psi (1.0 bar). The lightweight construction incorporates a dual wire helix that provides full suction capability, minimal force-to-bend, superior kink resistance, flexibility for ease of handling, and a path to conduct a static electrical charge to ground. The nitrile cover is resistant to abrasion and oil and features enhanced corrugations that allow easy, sanitary cleaning.

Parker Corrugated Food Suction Hose Sizes & Specifications

  • Tube: White nitrile
  • Reinforcement: Multiple textile plies with dual wire helix
  • Cover: Gray nitrile; enhanced corrugated wrapped finish
  • Temp. Range: -20°F to +225°F (-29°C to +107°C)
  • Brand Method: Gray text on blue stripe
  • Brand Example: PARKER SERIES SWC432 FOOD SUCTION MEETS FDA/3-A/USDA/
  • PMO REQUIREMENTS (3-A LOGO) XXX PSI WP MADE IN USA
  • Design Factor: 4:1
  • Industry Standards: FDA, PMO, USDA, 3-A
  • Applications:  Fatty and oily foods, liquids, milk, potable water, sanitary products.  In-plant and tank transfer.   Delivery, transport
  • Vacuum: Full
  • Packaging: Coils

Part Number

ID

Reinf
Plies

OD

Approx Wt

Min Bend Rad

Max Rec WP

Std Pack
Qty

in

mm

in

mm

lbs/ft

kg/ft

in

mm

psi

bar

ft

SWC432-2000

2

50.8

2

2.594

65.9

1.33

0.60

5.0

127.0

200

13.8

100

SWC432-3000

3

76.2

2

3.625

92.1

2.09

0.95

8.0

203.2

150

10.3

100

SWC432-4000

4

101.6

2

4.688

119.1

3.11

1.41

10.0

254.0

100

6.9

100



WARNINGS! „Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
