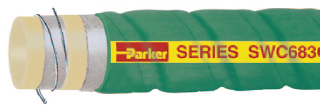

    TITANFLEX - XLPE Chemical Hose - Series SWC683G (Green)

    Series SWC683G is a flexible, lightweight, high pressure, high-temperature suction and discharge hose designed to handle many commonly used acids, chemicals, and solvents. The modified cross-linked polyethylene (MXLPE) tube will not leach into and contaminate the product being conveyed and features a temperature rating of 250°F (121°C). Series SWC683G can be cleaned with a 10% alkali bath, hot water, or low-pressure steam. The corrugated hose construction incorporates a dual wire helix that provides full suction capability, flexibility, kink resistance, and a path to conduct a static electrical charge to ground, and is suitable for use with internally expanded couplings. The cover is resistant to abrasion, mild chemicals, and ozone.

    Parker TITANFLEX Hose Sizes & Specifications

    • Tube: Tan modified cross-linked polyethylene (MXLPE)
    • Reinforcement: Multiple textile plies with dual wire helix
    • Cover: SWC683G: Green EPDM, corrugated wrapped finish
    • Temp. Range: -40°F to +250°F (-40°C to +121°C)
    • Brand Method: Red text on yellow stripe
    • Brand Example: PARKER SERIES SWC683G TITANFLEX® MOD XLPE CHEMICAL SUCTION XXX PSI WP MADE IN USA
    • Design Factor: 4:1
    • Industry Standards: None applicable
    • Applications: • Acid, chemicals, solvents • In-plant tank transfer • Delivery, transport
    • Vacuum: Full
    • Compare To: Gates Mustang
    • Packaging: Coils

    Part Number

    ID

    Reinf
    Plies

    OD

    Approx Wt

    Min Bend Rad

    Max Rec WP

    Perm
    Cplg Rec

    in

    mm

    in

    mm

    lbs/ft

    kg/ft

    in

    mm

    psi

    bar

    SWC683G-1000

    1

    25.4

    2

    1.500

    38.1

    0.49

    0.22

    2.0

    50.8

    250

    17.2

    *

    SWC683G-1500

    1-1/2

    38.1

    2

    2.031

    51.6

    0.77

    0.35

    3.0

    76.2

    250

    17.2

    *

    SWC683G-2000

    2

    50.8

    2

    2.563

    65.1

    1.04

    0.47

    4.0

    101.6

    250

    17.2

    *

    SWC683G-2500

    2-1/2

    63.5

    2

    3.015

    76.6

    1.48

    0.67

    5.0

    127.0

    200

    13.8

    *

    SWC683G-3000

    3

    76.2

    2

    3.625

    92.1

    1.98

    0.90

    6.0

    152.4

    200

    13.8

    *

    SWC683G-4000

    4

    101.6

    2

    4.625

    117.5

    2.66

    1.21

    8.0

    203.2

    175

    12.1

    *


    WARNINGS!
    „ It is the responsibility of the user to determine if the hose is suitable for the application. Most chemical resistance guides are based on temperatures of 70°F (21°C). Elevated temperatures can change the chemical resistance ratings. Many chemicals will become more aggressive as temperatures increase, reducing the ability of hose compounds to withstand them. Contact Parker for chemical compatibility data at elevated temperatures. If no data exists, users are required to perform compatibility testing at the desired temperature.

    „ At operating temperatures of 125°F and above, only permanently attached couplings should be installed. At any operating temperature, couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
