Water Industrial Hoses | Parker | BLUE RIBBON® Pressure Washer Hose | 7247 Series


     BLUE-RIBBON-7247

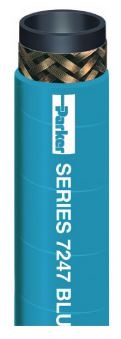

    Series 7247 is a high temperature, medium duty pressure washer hose for hot water and mild chemicals in food processing plants. The hose construction incorporates high tensile wire braid reinforcement that provides durability, kink resistance, and superior coupling retention. The thick blue cover is resistant to abrasion and fatty, oily foods.

    NOTE: Do not use for carpet cleaning or steam service.



    TUBE Black chloroprene
    REINFORCEMENT One wire braid
    COVER

    Blue chloroprene; perforated wrapped finish
    TEMPERATURE RANGE

    -40°F to 250°F (-40°C to 121°C)

    DESIGN FACTOR 4:1(1/2" @ 3.5:1)
    INDUSTRY STANDARDS None applicable
    APPLICATIONS
    • Hot water, mild chemicals
    • Breweries, dairies, food/poultry processing plants, general industrial
    VACUUM Not recommended
    COMPARE TO Boston Pressure Washer 3000; Gates Power Clean; Veyance Neptune
    PACKAGING Reels, cartons


    Part #

    		 ID (in) Reinf Braids
    		 OD (in) Min Bend Rad (in) Max Rec WP (psi) Perm Cplg Rec*
    7247-251BL 1/4 1 0.575 1.7 1500 HY
    7247-381BL 3/8 1 0.700 2.2 1500 HY
    7247-501BL 1/2 1 0.825 3.2 1500 HY

     *Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
