Water Industrial Hoses | Parker | DAY-FLO® EPDM Heavy Duty Water Discharge Hose | 7306H Series

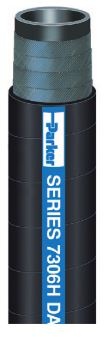

DAY-FLO-7306H

Series 7306H is a heavy duty discharge hose designed to handle alkalies, brine, glycols, herbicides, mild chemicals, slurries and water. The hose construction incorporates a heavy wall and elevated working pressure for durability and superior service. The EPDM cover is resistant to abrasion, heat, mild chemicals and weathering. Series 7306H is available in 200-foot continuous lengths.

 TUBE  Black EPDM
 REINFORCEMENT Multiple textile plies
 COVER

Black EPDM; wrapped finish

 TEMPERATURE RANGE

-30°F to 212°F (-34°C to 100°C)

 DESIGN FACTOR  4:1
 INDUSTRY STANDARDS  None applicable
 APPLICATIONS
  • Alkalies, brine, glycols, herbicides, mild chemicals, slurries, water
  • Agriculture, construction, general industrial, irrigation, surface mining
 VACUUM  Not recommended
 COMPARE TO  Kuriyama Heavy Water Discharge; Veyance HD Water Discharge
 PACKAGING  Coils


Part #

ID (in) Reinf Plies
OD (in) Max Rec WP (psi) Perm Cplg Rec*
7306H-1500 1-1/2 4 2.032 200 *
7306H-2000 2 4 2.536 200 *
7306H-2500 2-1/2 4 3.050 200 *
7306H-3000 3 4 3.550 200 *
7306H-4000 4 4 4.556 200 *
7306H-5000 5 4 5.582 200 *
7306H-6000 6 4 6.646 200 *
7306H-8000 8 4 8.644 200 *
7306H-10000** 10 4 10.646 150 *

 *Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.

**Note: Size -10000 of the 7306H series has discontinued production by Parker. Suggested replacements: ES104; ES115.
