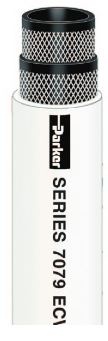

Water Industrial Hoses | Parker | ECW™ Economy White Washdown Hose | 7079 Series


ECW-7079

Series 7079 is a flexible, lightweight, medium pressure hose for hot water and mild chemicals in cleaning and washdown applications. The hose construction incorporates multiple plies of textile reinforcement that provides flexibility, and the white, non-marking cover is resistant to abrasion, heat and ozone.

NOTE: Do not expose to fatty or oily foods.



TUBE Black EPDM
REINFORCEMENT Multiple textile plies
COVER

White EDPM; smooth finish

TEMPERATURE RANGE

-40°F to 212°F (-40°C to 100°C)

DESIGN FACTOR 4:1
INDUSTRY STANDARDS None applicable
APPLICATIONS
  • Hot water, mild chemicals
  • Breweries, dairies, food processing plants, general industrial
VACUUM Not recommended
COMPARE TO Veyance Sani-Wash 300
PACKAGING Reels, coils


Part #

ID (in) Reinf Braids
OD (in) Min Bend Rad (in) Max Rec WP (psi) Perm Cplg Rec* Std Pack Qty (ft)
7079-75304 3/4 4 1.156 5.0 300 HY
400
7079-7530450 4 1.156 5.0 300 HY
>50

 *Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.



How to Order

  • Visit One of Our ParkerStores
  • Click on the quote button below.
 ASK QUESTION!  REQUEST QUOTE





IMPORTANT!
Hose and hose fittings series must be correctly matched. Using any fittings other than those specifically designated by the hose manufacturer for use with each specific hose can lead to hose assembly failure. Hose assembly failures have lead to damage, injury and death.

California Prop 65 Warning WARNING: These products can expose you to chemicals including lead and/or DEHP and/or carbon black, which are known to the State of California to cause cancer or birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov
