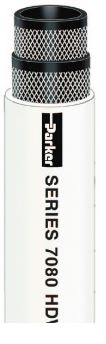

Water Industrial Hoses | Parker | HDW™ Heavy Duty White Creamery Washdown Hose | 7080 Series


HDW-7080


Series 7080 is a heavy duty, medium pressure washdown hose designed to handle hot water and mild chemicals in cleaning and washdown applications. The hose construction incorporates multiple plies of textile reinforcement that provides flexibility, and the white, non-marking cover is resistant to abrasion, heat and ozone.

NOTE: Do not expose to fatty or oily foods. Do not use for steam service.



TUBE Black EPDM
REINFORCEMENT Multiple textile plies
COVER

White EDPM; perforated smooth finish

TEMPERATURE RANGE

-40°F to 212°F (-40°C to 100°C)

DESIGN FACTOR 4:1
INDUSTRY STANDARDS None applicable
APPLICATIONS
  • Hot water, mild chemicals
  • Breweries, dairies, food processing plants, general industrial
VACUUM Not recommended
COMPARE TO Veyance Plicord Washdown
PACKAGING Reels, coils


Part #

ID (in) Reinf Braids
OD (in) Min Bend Rad (in) Max Rec WP (psi) Perm Cplg Rec* Std Pack Qty (ft)
7080-75304 3/4 4 1.25 6.5 300 HY
400
7080-7530450 3/4 4 1.25 6.5 300 HY
50

 *Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.



How to Order

  • Visit One of Our ParkerStores
  • Click on the quote button below.
 ASK QUESTION!  REQUEST QUOTE





IMPORTANT!
Hose and hose fittings series must be correctly matched. Using any fittings other than those specifically designated by the hose manufacturer for use with each specific hose can lead to hose assembly failure. Hose assembly failures have lead to damage, injury and death.
