Water Industrial Hoses | Parker | High Pressure Water Jetting Hose | 7335 Series


    High-water-jetting-7335

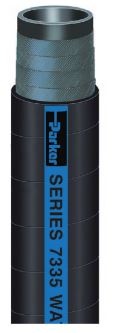

    Series 7335 is a standard duty jetting hose designed to handle slurries and water. The hose construction provides high pressure, high volume flow for cleanup and washdown applications. The SBR cover is resistant to abrasion and weathering. Series 7335 is available in 200-foot continuous lengths.

     TUBE  Black SBR
     REINFORCEMENT  Multiple textile plies
     COVER

    Black SBR; wrapped finish
     TEMPERATURE RANGE

     -40°F to 180°F (-40°C to 82°C)
     DESIGN FACTOR  4:1
     INDUSTRY STANDARDS  None applicable
     APPLICATIONS
    • Slurries, water
    • Construction, general industrial, irrigation, oil field, shipyards
     VACUUM  Not recommended
     PACKAGING  Coils


    Part #

    		 ID (in) Reinf Plies
    		 OD (in) Max Rec WP (psi) Perm Cplg Rec*
    7335-1250 1-1/4 2 1.750 500 *
    7335-1500 1-1/2 2 2.008 500 *
    7335-2000 2 4 2.637 500 *
    7335-2500 2-1/2 4 3.165 500 *
    7335-3000 3 4 3.736 500 *
    7335-4000 4 6 4.898 500 *

     *Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
