Water Industrial Hoses | Parker | Lightweight Water Suction Hose | SW300 Series


    Lightweight-water-suction-SW300

    Note: Parker has discontinued production of the SW300 series. Suggested replacements are the 7392 & 7392E SUPERFLEX series of water industrial hose.

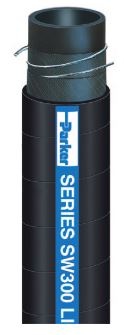

    Series SW300 is a large diameter, lightweight suction and discharge hose for slurries and water. The hose construction incorprates a dual wire helix that provides full suction capability and kink resistance. The SBR cover is resistant to abrasion and weathering.



     TUBE  Black SBR
     REINFORCEMENT  Multiple textile plies with dual wire helix
     COVER

    Black SBR; wrapped finish
     TEMPERATURE RANGE

     -40°F to 180°F (-40°C to 82°C)
     DESIGN FACTOR  4:1
     INDUSTRY STANDARDS  None applicable
     APPLICATIONS
    • Slurries, water
    • Construction, general industrial, surface mining
     VACUUM  Full
     COMPARE TO  Gates Barracuda; Veyance Plicord Con-Ag Water S&D
     PACKAGING  Coils


    Part #

    		 ID (in) Reinf Plies
    		 OD (in) Min Bend Rad (in) Max Rec WP (psi) Perm Cplg Rec*
    SW300-6000 6 2 6.625 30.0 100 *
    SW300-8000 8 4 9.188 48.0 100 *

     *Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
