Water Industrial Hoses | Parker | PWD™ High Pressure Washdown Hose | 7143 Series


     PWD-7143

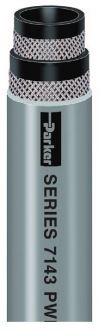

    Series 7143 is a flexible, high pressure, high temperature hose for hot water and mild chemicals in cleaning and washdown applications. The hose construction incorporates textile braided reinforcement for kink resistance and superior coupling retention. The non-marking cover is resistant to abrasion, heat and fatty, oily foods. The multiple cover colors provide color-coded identification.

    NOTE: Do not use for steam service.



    TUBE Black EPDM
    REINFORCEMENT Multiple textile braids
    COVER

    Black (BK), Gray  (GY), Yellow (YL) EDPM; smooth finish
    TEMPERATURE RANGE

    -40°F to 250°F (-40°C to 121°C)

    DESIGN FACTOR 3.5:1
    INDUSTRY STANDARDS None applicable
    APPLICATIONS
    • Hot water, mild chemicals
    • Breweries, dairies, food/poultry processing plants, general industrial
    VACUUM Not recommended
    COMPARE TO Boston Washdown 1250; Gates Cyclone; Veyance Fortress
    PACKAGING Reels


    Part #

    		 ID (in) Reinf Braids
    		 OD (in) Min Bend Rad (in) Max Rec WP (psi) Perm Cplg Rec*
    7143-382BK 3/8 2 0.734 4.0 1500 HY
    7143-382GY 3/8 2 0.734 4.0 1500 HY
    7143-382YL 3/8 2 0.734 4.0 1500 HY

     *Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
