Water Industrial Hoses | Parker | STINGER™ II High Pressure Mine and Multipurpose Hose | 7268E Series


 STINGER-II-7268E

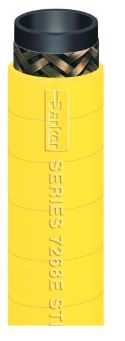

Series 7268E is a versatile, high pressure hose designed to handle air, mild chemicals, oil and water. The hose construction incorporates high tensile wire braid reinforcement that provides durability, kink resistance, high pressure capability, and superior coupling retention. The flame resistant bright yellow cover meets MSHA requirements and is also resistant to abrasion and oil. Series 7268E provides service for high pressure air, dust suppression and water applications in construction, general industrial, mining and quarry applications.



TUBE Black nitrile
REINFORCEMENT One wire braid
COVER

Yellow nitrile/PVC; perforated wrapped finish
TEMPERATURE RANGE

-20°F to 212°F (-29°C to 100°C)

DESIGN FACTOR 4:1
INDUSTRY STANDARDS MSHA
APPLICATIONS
  • Air, mild chemicals, oil, water
  • Heavy duty air tools, compressors; drill hose, dust suppression in mines
  • Construction, general industrial, mining, quarries
VACUUM Not recommended
COMPARE TO Boston Concord Yellow Jack; Gates 1000MP/Mine Spray; Veyance Minespray, Super Ortac
PACKAGING Reels, cartons


Part #

 ID (in) Reinf bRAIDS
 OD (in) Max Rec WP (psi) Perm Cplg Rec*
7268E-751 3/4 1 1.043 1000 HY, 43
7268E-751050 3/4 1 1.043 1000 HY, 43
7268E-751100 3/4 1 1.043 1000 HY, 43
7268E-1001 1 1 1.339 1000 HY, 43
7268E-1001050 1 1 1.339 1000 HY, 43
7268E-1001100 1 1 1.339 1000 HY, 43
7268E-1251050 1-1/4 1 1.630 1000 HY, 43
7268E-1251100 1-1/4 1 1.630 1000 HY, 43
7268E-1501050 1-1/2 1 1.890 1000 43
7268E-1501100 1-1/2 1 1.890 1000 43
7268E-2001 2 1 2.437 1000 43
7268E-2001100 2 1 2.437 1000 43

 *Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.

Note: Hose does not meet SAE standards for mobile equipment or vehicle engine service.
