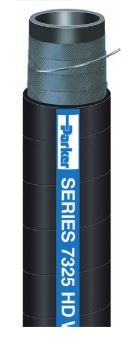

Water Industrial Hoses | Parker | SUPER-FLEX® EPDM Heavy Duty Water Suction Hose | 7325 Series


SUPER-FLEX-7325

Series 7325 is a heavy duty. high pressure suction and discharge hose designed to handle alkalies, brine, glycols, herbicides, mild chemicals, slurries and water. The hose construction incorprates a wire helix that provides full suction capability and kink resistance, with a heavy wall and elevated working pressure for durability and superior service. The EPDM cover is resistant to abrasion, heat, mild chemicals and weathering.  Series 7325 is available in 200-foot continuous lengths.



 TUBE  Black EPDM
 REINFORCEMENT  Multiple textile plies with wire helix
 COVER

Black EPDM; wrapped finish

 TEMPERATURE RANGE

 -40°F to 212°F (-40°C to 100°C)

 DESIGN FACTOR  4:1
 INDUSTRY STANDARDS  None applicable
 APPLICATIONS
  • Alkalies, brine, glycols, herbicides, mild chemicals, slurries, water
  • Agriculture, construction, general industrial, irrigation, surface mining
 VACUUM  Full
 PACKAGING  Coils


Part #

ID (in) Reinf Plies
OD (in) Min Bend Rad (in) Max Rec WP (psi) Perm Cplg Rec*
7325-1500 1-1/2 4 2.094 6.0 300 *
7325-2000 2 4 2.661 8.0 300 *
7325-2500 2-1/2 4 3.228 10.0 300 *
7325-3000 3 4 3.700 12.0 300 *

 *Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.



How to Order

  • Visit One of Our ParkerStores
  • Click on the quote button below.
 ASK QUESTION!  REQUEST QUOTE





IMPORTANT!
Hose and hose fittings series must be correctly matched. Using any fittings other than those specifically designated by the hose manufacturer for use with each specific hose can lead to hose assembly failure. Hose assembly failures have lead to damage, injury and death.

California Prop 65 Warning WARNING: These products can expose you to chemicals including lead and/or DEHP and/or carbon black, which are known to the State of California to cause cancer or birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov
