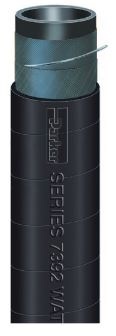

Water Industrial Hoses | Parker | SUPER-FLEX® EPDM Water Suction Hose | 7392 Series

 SUPER-FLEX-7392

Series 7392 is a suction and discharge hose designed to handle alkalies, brine, glycols, herbicides, mild chemicals, slurries and water. The hose construction incorprates a wire helix that provides full suction capability and kink resistance. The EPDM cover is resistant to abrasion, heat, mild chemicals and weathering. Series 7392 is available in 200-foot continuous lengths.

 TUBE  Black EPDM
 REINFORCEMENT  Multiple textile plies with wire helix
 COVER

Black EPDM; wrapped finish

 TEMPERATURE RANGE

-40°F to 212°F (-40°C to 100°C)

 DESIGN FACTOR  4:1
 INDUSTRY STANDARDS  None applicable
 APPLICATIONS
  • Alkalies, brine, glycols, herbicides, mild chemicals, slurries, water
  • Agriculture, construction, general industrial, irrigation, surface mining
 VACUUM  Full
 COMPARE TO  Gates Barracuda; Veyance Plicord Con-Ag Water S&D
 PACKAGING  Coils


Part #

ID (in) Reinf Plies
OD (in) Min Bend Rad (in) Max Rec WP (psi) Perm Cplg Rec*
7392-1250 1-1/4 2 1.606 5.0 150 *
7392-1500 1-1/2 2 1.937 6.0 150 *
7392-2000 2 2 2.425 7.0 150 *
7392-2500 2-1/2 2 2.965 8.0 150 *
7392-3000 3 2 3.528 10.0 150 *
7392-4000 4 2 4.583 14.0 150 *
7392-5000 5 2 5.669 22.0 100 *
7392-6000 6 4 6.831 30.0 100 *
7392-8000 8 4 8.921 38.0 100 *
7392-10000** 10 4 10.984 50.0 100 *
7392-12000** 12 4 13.094 66.0 100 *

 *Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.

**Note: Sizes -10000 and -12000 of the 7392 series has discontinued production by Parker. Suggested replacements: EW300; EW301.



How to Order

  • Visit One of Our ParkerStores
  • Click on the quote button below.
 ASK QUESTION!  REQUEST QUOTE





IMPORTANT!
Hose and hose fittings series must be correctly matched. Using any fittings other than those specifically designated by the hose manufacturer for use with each specific hose can lead to hose assembly failure. Hose assembly failures have lead to damage, injury and death.

California Prop 65 Warning WARNING: These products can expose you to chemicals including lead and/or DEHP and/or carbon black, which are known to the State of California to cause cancer or birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov
