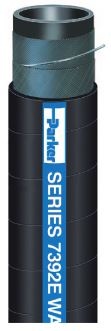

Water Industrial Hoses | Parker | SUPER-FLEX® EPDM Water Suction Hose | 7392E Series


 SUPER-FLEX-7392E

Series 7392E is a lightweight suction and discharge hose designed to handle alkalies, brine, glycols, herbicides, mild chemicals, slurries and water. The hose construction incorprates a wire helix that provides full suction capability and kink resistance. The EPDM cover is resistant to abrasion, heat, mild chemicals and weathering.

 TUBE  Black EPDM
 REINFORCEMENT  Multiple textile plies with wire helix
 COVER

Black EPDM; wrapped finish

 TEMPERATURE RANGE

-40°F to 180°F (-40°C to 82°C)

 INDUSTRY STANDARDS  None applicable
 APPLICATIONS
  • Alkalies, brine, glycols, herbicides, mild chemicals, slurries, water
  • Agriculture, construction, general industrial, irrigation, surface mining
 VACUUM  Full
 COMPARE TO  Gates Barracuda; Veyance Plicord Con-Ag Water S&D
 PACKAGING  Coils


Part #

ID (in) Reinf Plies
OD (in) Min Bend Rad (in) Max Rec WP (psi) Perm Cplg Rec*
7392E-1500 1-1/2 2 1.890 6.0 150 *
7392E-2000 2 2 2.440 7.0 150 *
7392E-2500 2-1/2 2 2.950 8.0 150 *
7392E-3000 3 2 3.500 10.0 150 *
7392E-4000 4 2 4.530 22.0 100 *
7392E-6000 6 4 6.570 30.0 100 *

 *Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
