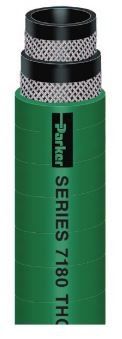

Water Industrial Hoses | Parker | THORO-SPRAY® High Pressure Chemical Spray Hose | 7180 Series


    THORO-SPRAY-7180


    Series 7180 is a high pressure spray hose designed to handle liquid fertilizers, herbicides, many common chemicals and water. The hose construction incorporates braided textile reinforcement for kink resistance and superior coupling retention. The cover is resistant to mild chemicals and ozone, and is non-marking for commercial and residential use.



    TUBE Black nitrile
    REINFORCEMENT Multiple textile braids
    COVER

    Green nitrile/PVC; wrapped finish
    TEMPERATURE RANGE

    -20°F to 180°F (-29°C to 82°C)

    DESIGN FACTOR 4:1
    INDUSTRY STANDARDS None applicable
    APPLICATIONS
    • Fertilizers, pesticides
    • Agricultural, commercial and residential sprayers
    VACUUM Not recommended
    PACKAGING Reels


    Part #

    		 ID (in) Reinf Braids
    		 OD (in) Min Bend Rad (in) Max Rec WP (psi) Perm Cplg Rec*
    7180-252 1/4 2 0.625 3.0 800 *
    7180-382 3/8 2 0.750 4.0 800 HY
    7180-502 1/2 2 0.938 5.0 800 HY

     *Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
