Water Industrial Hoses | Parker | WALRUS™ EPDM Water Suction Hose | SW500 Series

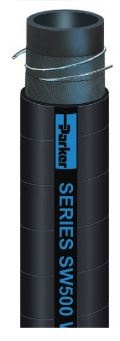

WALRUS-SW500

Series SW500 is a suction and discharge hose designed to handle alkalies, brine, glycols, herbicides, mild chemicals, slurries and water. The hose construction incorprates a dual wire helix that provides full suction capability and kink resistance. The EPDM cover is resistant to abrasion, heat, mild chemicals and weathering.



 TUBE  Black EPDM
 REINFORCEMENT Multiple textile plies with dual wire helix
 COVER

Black EPDM; wrapped finish

 TEMPERATURE RANGE

 -40°F to 200°F (-40°C to 93°C)

 DESIGN FACTOR  4:1
 INDUSTRY STANDARDS  None applicable
 APPLICATIONS
  • Alkalies, brine, glycols, herbicides, mild chemicals, slurries, water
  • Agriculture, construction, general industrial, irrigation, surface mining
 VACUUM  Full
 PACKAGING  Coils


Part #

ID (in) Reinf Plies
OD (in) Min Bend Rad (in) Max Rec WP (psi) Perm Cplg Rec*
SW500-1500 1-1/2 2 1.875 6.0 200 *
SW500-2000 2 2 2.438 8.0 150 *
SW500-2500 2-1/2 2 2.938 11.0 150 *
SW500-3000 3 2 3.438 14.0 150 *
SW500-4000 4 2 4.500 18.0 150 *
SW500-6000 6 4 6.625 28.0 150 *

 *Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
