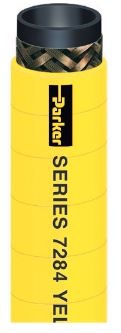

Water Industrial Hoses | Parker | YELLOW BIRD® High Pressure Mine and Multipurpose Hose | 7284 Series


 YELLOW-BIRD-7284

Series 7284 is a versatile, heavy duty high pressure hose designed to handle air, mild chemicals and water. The hose construction incorporates high tensile wire braid reinforcement that provides durability, kink resistance, high pressure capability, and superior coupling retention. The flame resistant bright yellow cover meets MSHA requirements and is also resistant to abrasion and oil. Series 7284 provides service for high pressure air, dust suppression and water applications in construction, general industrial, mining and quarry applications.



TUBE Black SBR
REINFORCEMENT One wire braid
COVER

Yellow nitrile/PVC; perforated wrapped finish

TEMPERATURE RANGE

-20°F to 212°F (-29°C to 100°C)

DESIGN FACTOR 4:1
INDUSTRY STANDARDS MSHA
APPLICATIONS
  • Air, mild chemicals, water
  • Heavy duty air tools, compressors; drill hose, dust suppression in mines
  • Construction, general industrial, mining, quarries
VACUUM Not recommended
COMPARE TO Boston Concord Yellow Jack; Gates 1000MP/Mine Spray; Thermoid Hercules 1000
PACKAGING Reels, cartons


Part #

ID (in) Reinf Braids
OD (in) Min Bend Rad (in) Max Rec WP (psi) Perm Cplg Rec* Std Pack Qty (ft)
7284-381 3/8 1 0.700 6.0 1500 HY
500
7284-381050 3/8 1 0.700 6.0 1500 HY 50
7284-381075 3/8 1 0.700 6.0 1500 HY 75
7284-381100 3/8 1 0.700 6.0 1500 HY 100
7284-501 1/2 1 0.969 7.0 1000 7661 500
7284-501050 1/2 1 0.969 7.0 1000 7661 50
7284-501100 1/2 1 0.969 7.0 1000 7661 100
7284-751 3/4 1 1.219 9.5 1000 HY 500
7284-751050 3/4 1 1.219 9.5 1000 HY 50
7284-751075 3/4 1 1.219 9.5 1000 HY 75
7284-751100 3/4 1 1.219 9.5 1000 HY 100
7284-1001050 1 1 1.469 12.0 1000 7661 50

 *Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
