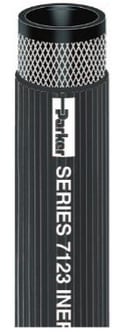

Welding Industrial Hoses | Parker | Inert Gas Hose | 7123 Series


 Inert-Gas-7123

Series 7123 is designed to handle inert/noble gases such as argon, carbon dioxide, helium and nitrogen in arc welding systems. The hose construction incorporates multiple plies of textile reinforcement that provide flexibility, and the cover is resistant to abrasion, heat, mild chemicals and ozone.

 TUBE  Black EPDM
 REINFORCEMENT  Multiple textile plies
 COVER

Black EPDM; ribbed finish
 TEMPERATURE RANGE

 -40°F to 200°F (-40°C to 93°C)

 DESIGN FACTOR  4:1
 INDUSTRY STANDARDS  CGA E-1 color requirements
 APPLICATIONS
  • Air, argon, carbon dioxide, helium, nitrogen
  • Shield gas
  • Arc welding systems
 VACUUM  Not recommended
 PACKAGING  Reels


Part #

 ID (in) Reinf Plies
 OD (in) Min Bend Rad (in) Max Rec WP (psi)
7123-19200 3/16 2 0.438 2.0 200
7123-25200 1/4 2 0.500 2.5 200

 *Couplings: Bulk welding hose couplings are not sold separatly from Parker.



How to Order

  • Visit One of Our ParkerStores
  • Click on the quote button below.
 ASK QUESTION!  REQUEST QUOTE





IMPORTANT!
Hose and hose fittings series must be correctly matched. Using any fittings other than those specifically designated by the hose manufacturer for use with each specific hose can lead to hose assembly failure. Hose assembly failures have lead to damage, injury and death.
