Convoluted FEP Tubing | Parker Series CV03 & Convo-Flon™

Note: As of August 1, 2018, production of Convo-Flon™ FEP tubing will be discontinued. Please contact our Sales department for suggested replacements.

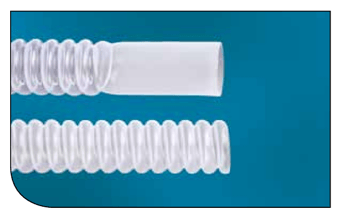

Convoluted FEP Tubing, Series CV03

Return to Plastic Tubing Selection Page

FEATURES:

Chemically inert
Good flexlife
Very flexible
Translucent
Long continuous lengths
Working Temp: -100°F to 400°F
(-75°C to 204°C)

CERTIFICATIONS

ASTM D3296-03
VW-1, UL-83 (natural)

Sizes and Specifications

Colors: Natural, Translucent

FEP Convoluted

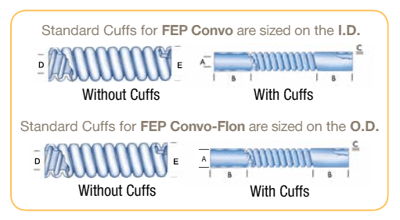

Part #	Size	Standard Cuff I.D "A" (in)	Standard Cuff Length "B" (in)	Wall Thickness "C" (in)	Min. I.D. "D" (in)	Max I.D. "D" (in)	Max O.D. "E" (in)	Min. Bend Radius (in)
CV03-1/4-NT	1/4	1/4	3/4	0.020	0.251	0.265	0.405	0.365
CV03-5/16-NT	5/16	5/16	1	0.023	0.273	0.281	0.424	0.500
CV03-3/8-NT	3/8	3/8	1	0.023	0.364	0.375	0.530	0.875
CV03-1/2-NT	1/2	1/2	1	0.025	0.485	0.500	0.660	0.625
CV03-5/8-NT	5/8	5/8	1-1/4	0.025	0.609	0.625	0.780	1.500
CV03-3/4-NT	3/4	3/4	1-1/2	0.025	0.730	0.750	0.975	3.500
CV03-1.00-NT	1	1	2	0.030	0.975	1.000	1.260	2.250
CV03-1.25-NT	1-1/4	1-1/4	2-1/2	0.040	1.210	1.250	1.540	2.500
CV03-1.50-NT	1-1/2	1-1/2	2-1/2	0.045	1.490	1.530	1.940	3
CV03-2.00-NT	2	2	2-1/2	0.045	1.990	2.020	2.370	4.250
CV03-2.50-NT	2-1/2	2-1/2	3	0.065	2.440	2.500	3.000	6.500
CV03-3.00-NT	3	3	3	0.065	2.920	3.020	3.740	7.50

FEP Convo-Flon™ Convoluted

Part #	Size	Standard Cuff I.D "A" (in)	Standard Cuff Length "B" (in)	Wall Thickness "C" (in)	Min. I.D. "D" (in)	Max I.D. "D" (in)	Max O.D. "E" (in)	Min. Bend Radius (in)
Contact Customer Service	1/4 x 3/8	1/4	3/4	0.020	0.251	0.265	0.375	0.625
	3/8 x 1/2	5/16	1	0.023	0.364	0.375	0.500	0.875
	1/2 x 5/8	3/8	1	0.025	0.480	0.500	0.625	1.250
	5/8 x 3/4	1	2	0.025	0.609	0.625	0.750	1.500
	3/4 x 7/8	1-1/4	2-1/2	0.025	0.730	0.750	0.875	1.750
	.800 x 1	1-1/2	2-1/2	0.030	0.800	0.820	1.000	2.250
	1-1/4 & 1-1/2	Contact Customer Service for Actual Dimensions
