Metric Nylon Tubing | Parker Series N

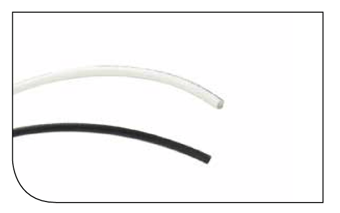

Flexible Nylon Tubing
FEATURES:
|
Sizes and Specifications
Part # (Natural) |
Part # (Black) |
Tube O.D. (mm) | Tube I.D. (mm) | Average Wall Thickness (mm) | Working Pressure (psi, at 73°F/23°C) | Minimum Burst (psi, at 73°F/23°C) |
NN4X.65 | NB4X.65 | 4 | 2.7 | 0.65 | 300 | 1200 |
NN6X1 | NB6X1 | 6 | 4.0 | 1.00 | 341 | 1363 |
NN8X1 | NB8X1 | 8 | 6.0 | 1.00 | 247 | 986 |
NN10X1 | NB10X1 | 10 | 8.0 | 1.00 | 181 | 725 |
NN12X1 | NB12X1 | 12 | 10.0 | 1.00 | 160 | 638 |
NN14X1.5 | NB14X1.5 | 14 | 11.0 | 1.50 | 218 | 870 |
NN16X1.5 | NB16X1.5 | 16 | 13.0 | 1.50 | 181 | 725 |
NN18X1.5 | NB18X1.5 | 18 | 15.0 | 1.50 | 152 | 609 |
NN20X1.5 | NB20X1.5 | 20 | 17.0 | 1.50 | 138 | 551 |

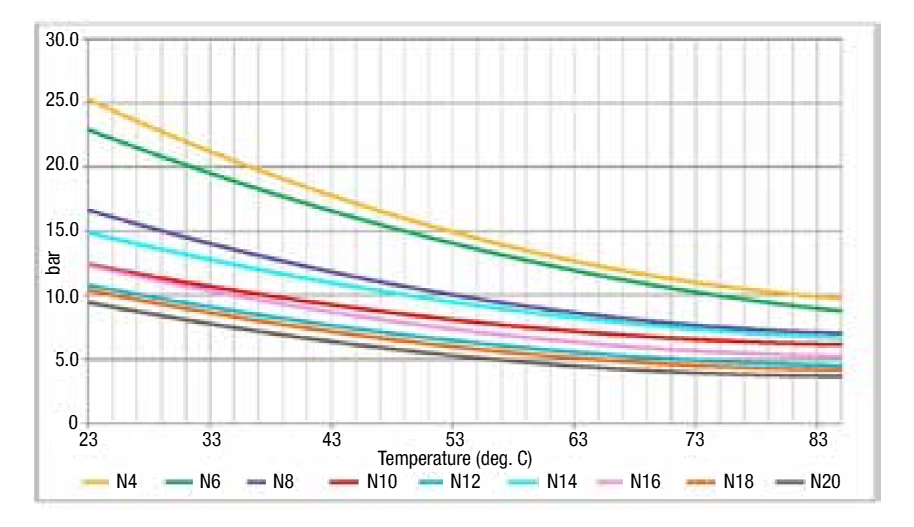

Maximum Working Pressure (psig) |
Notes
- Black tubing suggested for use in sunlit areas and in close proximity to high ultraviolet light sources
- Recommended operating temperature range for service at rated pressures with compatible fluids, depending upon conditions, is -65°F to 200°F (-54°C to 93°C)
Use with The Following Parker Fittings
- Flow Control
- Prestolok Brass
- Prestolok Composite
- Prestomatic
- Metru-Lok
A tube support should be used with this tubing for maximum holding power where end loading, vibration or pressure spikes may occur. See compatibility chart for plastic tubing with fittings.
