Polyethylene Tubing | Parker Series E | Fractional Sizes

Instrument Grade – FDA, NSF Listed

 Parker E Series Polyethylene Tubing, Fractional Sizes

Return to Plastic Tubing Selection Page

FEATURES:

  • Made from 100% virgin resin material
  • Chemically resistant
  • High molecular weight resin provides increased dimensional stability, uniformity and long-term strength
  • Economical system solution

CERTIFICATIONS:

  • FDA compliant for food contact
  • ASTM D-1693 (10% IGEPAL) for stress crack resistance
  • NSF-51
  • NSF-61

Sizes and Specifications


Part Number

(Natural)

Part Number (Black)

Tube O.D. (in) Tube I.D. (in) Average Wall Thickness (in) Working Pressure (psi, at 73°F/23°C) Minimum Burst (psi, at 73°F/23°C)

Minimum Bend Radius (in)

E-43-XXXX EB-43-XXXX 1/4 .170 .040 120 480 1.00
E-53-XXXX EB-53-XXXX 5/16 .187 .062 145 580 1.13
E-64-XXXX EB-64-XXXX 3/8 .250 .062 125 500 1.25
E-86-XXXX EB-86-XXXX 1/2 .375 .062 90 360 2.50
E-108-XXXX EB-108-XXXX 5/8 .500 .062 70 280 4.00

Standard black tubing is not NSF approved.

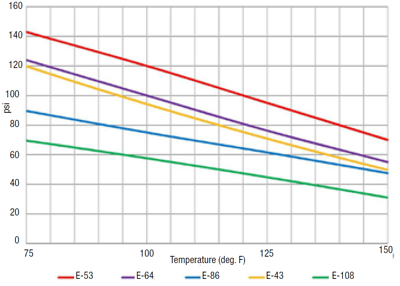

Available Colors Maximum Working Pressure (psig)

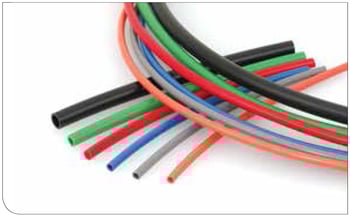

 Parker E Series - available colors Parker E Series Pressure Chart

Notes

  • FDA, NSF-51 and NSF-61 compliant black polyethylene tubing is also available
  • E Series natural and colored tubing meet FDA, NSF-51 requirements for food contact applications and NSF-61 for potable water
  • Resistant to environmental stress cracking exceeding that of ordinary polyethylene tubing as measured by ASTM D-1693 (10% IGEPAL)
  • All tubing conforms to ASTM D-1248, Type I, Class A, Category 4, Grade E5
  • The recommended operating temperature range for service at rated pressures with compatible fluids is -80°F to 150°F (-62°C to 66°C)

Use with The Following Parker Fittnigs

  • Compression
  • Compress-Align
  • Poly-Tite
  • Hi-Duty
  • Fast & Tite
  • Flow Control
  • Prestolok Brass
  • Prestolok Composite
  • Liquifit
  • TrueSeal
  • Dubl-Barb
  • Prestomatic
  • SAE Cartridge

A tube support should be used with this tubing for maximum holding power where end loading, vibration or pressure spikes may occur. See compatibility chart for plastic tubing with fittings.



How to Order
