Polypropylene Tubing | Parker Series PPB

Ultraviolet Light Resistant

 Parker PPB Series Tubing

Return to Plastic Tubing Selection Page

FEATURES:

  • Acid and chemically resistant
  • May be used in higher temperatures and working pressures than polyethylene tubing
  • Excellent compatibility with high temperature water
  • Low water absorption (less than .01%)
  • Good compatibility with vegetable oils
  • Excellent resistance to environmental stress cracking

CERTIFICATIONS:

  • FDA
  • NSF

(Both in white; NSF also in special black part numbers)

Sizes and Specifications




Part Number Tube O.D. (in) Tube I.D. (in) Average Wall Thickness (in) Working Pressure (psi, at 73°F/23°C) Minimum Burst (psi, at 73°F/23°C) Minimum Bend Radius (in)
PPB-21-1000 1/8 .079 .023 350 1400 .50
PPB-32-0500 3/16 .120 .034 350 1400 .75
PPB-43-0500 1/4 .170 .040 300 1200 1.00
PPB-53-0500 5/16 .188 .062 350 1400 1.25
PPB-64-0500 3/8 .250 .062 300 1200 1.25
PPB-86-0250 1/2 .375 .062 225 900 2.50
PPB-108-0100 5/8 .500 .062 175 700 4.00

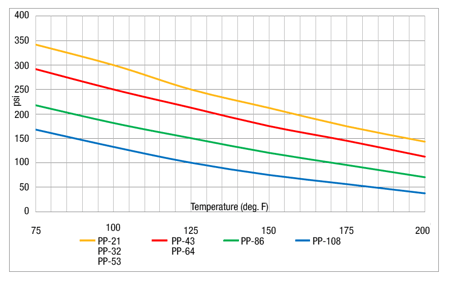

Maximum Working Pressure (psig)
Parker PPB Series Pressure Rating


Notes

  • NSF black polypropylene tubing is available upon special request.
  • Suggested operating temperature range for service at rated pressures with compatible fluids is 0°F to 200°F (-18°C to 93°C)

Use with The Following Parker Fittings

  • Compression
  • Compress-Align
  • Poly-Tite
  • Hi-Duty
  • Fast & Tite
  • Prestolok Brass
  • Liquifit
  • TrueSeal™

A tube support should be used with this tubing for maximum holding power where end loading, vibration or pressure spikes may occur. See compatibility chart for plastic tubing with fittings.



How to Order
