Polyurethane Tubing | Parker Series U
NOTICE: Parker Parflex division will discontinue offering Series U Polyurethane Tubing August 1, 2019.
The recommended replacement is likely the new Series 95U, available July 1, 2019.
Polyether Base
FEATURES:
|
Sizes and Specifications
Part Number | Tube O.D. (in) | Tube I.D. (in) | Average Wall Thickness (in) | Working Pressure (psi, at 73°F/23°C) | Minimum Burst (psi, at 73°F/23°C) |
U-21-XXXX | 1/8 | .063 | .031 | 125 | 375 |
U-32-XXXX | 3/16 | .125 | .031 | 125 | 375 |
U-42-XXXX | 1/4 | .125 | .063 | 125 | 375 |
U-64-XXXX | 3/8 | .250 | .063 | 125 | 375 |
U-85-XXXX | 1/2 | .328 | .086 | 125 | 375 |
U-86-XXXX | 1/2 | .375 | .063 | 85 | 255 |
U-96-XXXX | 9/16 | .365 | .094 | 125 | 375 |
U-128-XXXX | 3/4 | .500 | .125 | 125 | 375 |

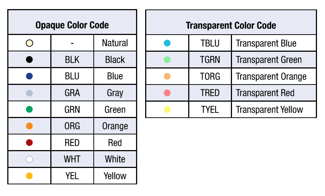

Available Colors | Maximum Working Pressure (psig) |
Notes
- The suggested operating temperature range for service at rated pressures with compatible fluids is -40°F to 180°F (-40°C to 82°C)
Use with The Following Parker Fittings
- Fast & Tite
- Flow Control
- Prestolok Brass
- Prestolok Composite
- TrueSeal
- Par-Barb
A tube support should be used with this tubing for maximum holding power where end loading, vibration or pressure spikes may occur. See compatibility chart for plastic tubing with fittings.
How to Order
- Visit One of Our ParkerStores.
- Visit Our eStore.
- Request a Quote.
