Parker Cylinder Port Availability

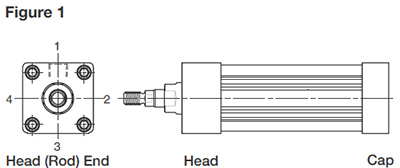

Parker cylinders can be ordered with a variety of different port types and positions. The standard port location is Position 1, as indicated in Figure 1. Cushion adjustment needle valves are at position 2 and 4 (or 3), depending on the mounting style. See Table A for mounting styles in which the head or cap can be rotated at no extra charge. To order, specify by position number. The cushion adjustment needle valves rotate accordingly in such assemblies, as their relationship with the port position does not change. |
![]() |
Table A
Mounting Style | Head End | Cap End |
T, TB, TC, TD, H, HB, J, JB, DD | 1, 2, 3 or 4 | 1, 2, 3 or 4 |
BB, DB | 1, 2, 3 or 4 | 1 or 3 |
D | 1 or 3 | 1, 2, 3 or 4 |
C, F | 1 | 1 |
Cylinder Port Options
- Option "T": SAE Straight Thread O-Ring Port. Recommended for most hydraulic applications.
- Option "U": Conventional NPTF Ports (Dry-Seal Pipe Threads). Recommended for pneumatic applications only.
- Option "R": BSPP Port (British Parallel Thread). ISO 228 port commonly used in Europe.
- Option "P": SAE Flange Ports Code 61. Recommended for hydraulic applications requiring larger port sizes.
- Option "B": BSPT (British Tapered Thread)
- Option "G": Metric Straight Thread Port - similar to Option "R" with metric thread. Popular in some European applications.
- Option "Y": ISO-6149-1 Metric Straight Thread Port. Recommended for all hydraulic applications designed per ISO standards.
SAE Straight Thread O-Ring Port Dimensions
Size no. | Tube O.D. (in) | Thread Size |
2 | 1/7 | 5/16 - 24 |
3 | 3/16 | 3/8 -24 |
4 | 1/4 | 7/16 - 20 |
5 | 5/16 | 1/2 - 20 |
6 | 3/8 | 9/16 - 18 |
8 | 1/2 | 3/4 - 16 |
10 | 5/8 | 7/8 - 14 |
12 | 3/4 | 1-1/16 - 12 |
16 | 1 | 1-5/16 - 12 |
20 | 1-1/4 | 1-5/8 - 12 |
24 | 1-1/2 | 1-7/8 - 12 |
32 | 2 | 2-1/2 - 12 |
International/British Standard Pipe Thread Port Dimensions
Nominal Pipe Size | Threads per in. | Pipe O.D. |
1/8 | 28 | 0.383 |
1/4 | 19 | 0.518 |
3/8 | 19 | 0.656 |
1/2 | 14 | 0.825 |
3/4 | 14 | 1.041 |
1 | 11 | 1.309 |
1-1/4 | 11 | 1.650 |
1-1/2 | 11 | 1.882 |
2 | 11 | 2.347 |
Available Pneumatic Cylinder Styles
![]() |
Tie Rod Cylinders | ![]() |
Guided Cylinders |
![]() |
Round Body Cylinders | ![]() |
Rodless Cylinders |
![]() |
Compact Cylinders |
