2MNR Series Tie Rod Cylinders | 1-1/2" to 4" Bore Sizes | Parker

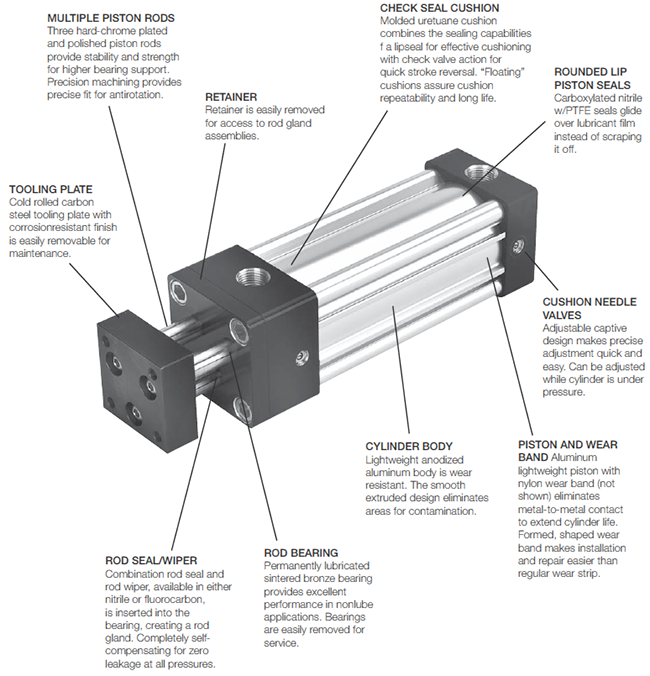

Features:

  • NFPA interchangeable
  • Non-rotating, multi-rod design
  • Cushions - optional at either end or both ends of stroke
  • Strokes available in any practical stroke length
  • Caustic washdown version available

Operating Information:

Operating pressure -

  • 250 PSI (17 bar) maximum air service

Temperature range -

  • Standard seals: -10°F to 165°F
  • Fluorocarbon seals: -20°F to 250°F

General Specifications:

  • Bore sizes - 1-1/2", 2", 2-1/2", 3-1/4" and 4"
  • Single or double end designs
  • 9 NFPA standard mounting styles
  • Mounts plus 1 base bar style
Material Specs Mounting Styles


Material Specifications for Standard Temperatures and Applications

Head and Cap Black anodized aluminum alloy
Head and Cap Screws Zinc plated steel alloy
Cylinder Body Clear anodized aluminum alloy
Piston Rod Case-hardened, chrome plated carbon steel
Rod Seal Carboxylated nitrile (Nitroxile)
Rod Wiper Molythane
Rod Bearing (Gland) Bronze alloy
Piston Aluminum alloy
Piston Seals Carboxylated nitrile (Nitroxile)
Piston Bearing Composite (for standard piston); MolyGard™ (for aluminum piston)
Magnetic Ring Plastic-bound magnetic material
Piston Fastener Piston rod for aluminum piston
O-Rings Nitrile
End Seals Nitrile
Cushion Seals Urethane
Cushion Needle Valves Stainless steel
Tie-Rods/Studs Blackened carbon steel 1018 (some mounts)
Tie-Rod Nuts Steel alloy, SAE J995 Grade 8 (some mounts)
