Cap Detachable Clevis Mounting Style BC for 2MNR Series Tie Rod Cylinders | Parker

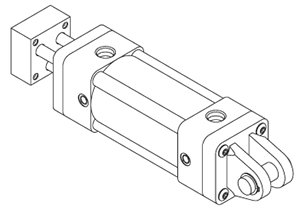

2MNR BC Mounting Style

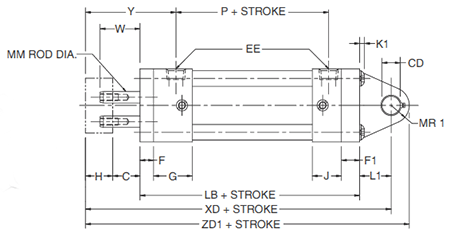

2MNR BC Mounting Style Head Dimensions2MNR BC Mounting Style Body Dimensions

Style BC

 Bore Size
Rod Dia. MM  C
CB CD +.000 -.002 CW E
EE (NPTF)
F G H
J K1 L1 MR1 W Y LB P XD ZD1
1-1/2 8 3/4 3/4 0.501 1/2 2 1/4 3/8 1-7/16 3/4 15/16 1/8 3/4 1/2 1.10 2-3/4 4-3/8 2-5/16 6-5/8 7-1/8
 2 12 3/4 3/4 0.501 1/2 2-1/2 1/4 3/8 1-7/16 3/4 15/16 5/32 3/4 1/2 1.10 2-3/4 4-3/8 2-5/16 6-5/8 7-1/8
 2-1/2 16 3/4 3/4 0.501 1/2 3 3/8 3/8 1-7/16  1 15/16 5/32 3/4 1/2 1.35 3-1/16 4-1/2 2-3/8 7 7-1/2
 3-1/4 16 3/4 1-1/4 0.751 5/8 3-3/4 1/2 5/8 1-11/16  1 1-3/16 3/16 1-1/4 3/4 1.10 3-7/16 5-1/2 2-5/8 8-1/2 9-1/4
 4 16 3/4 1-1/4 0.751 5/8 4-1/2 1/2 5/8 1-11/16  1 1-3/16 3/16 1-1/4 3/4 1.10 3-7/16 5-1/2 2-5/8 8-1/2 9-1/4
