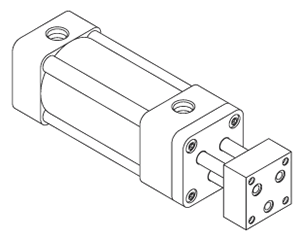

Side Tapped Mounting Style F for 2MNR Series Tie Rod Cylinders | Parker
|
|
  |

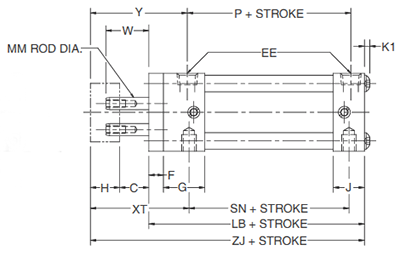

Style F
| Bore Size |
Rod Dia. MM | C |
E |
EE (NPTF) |
F | G | H |
J | K1 | ND | NT | TH ±0.003 | TN | W | Y | LB | P | ZJ |
| 1-1/2 | 8 | 3/4 | 2 | 1/4 | 3/8 | 1-7/16 | 3/4 | 15/16 | 1/8 | 3/8 | 1/4-20 | 0.993 | 5/8 | 1.10 | 2-3/4 | 4 | 2-5/16 | 5-1/2 |
| 2 | 12 | 3/4 | 2-1/2 | 1/4 | 3/8 | 1-7/16 | 3/4 | 15/16 | 5/32 | 7/16 | 5/16-18 | 1.243 | 7/8 | 1.10 | 2-3/4 | 4 | 2-5/16 | 5-1/2 |
| 2-1/2 | 16 | 3/4 | 3 | 3/8 | 3/8 | 1-7/16 | 1 | 15/16 | 5/32 | 5/8 | 3/8-16 | 1.493 | 1-1/4 | 1.35 | 3-1/16 | 4-1/8 | 2-3/8 | 5-7/8 |
| 3-1/4 | 16 | 3/4 | 3-3/4 | 1/2 | 5/8 | 1-11/16 | 1 | 1-3/16 | 3/16 | 3/4 | 1/2-13 | 1.868 | 1-1/2 | 1.10 | 3-7/16 | 4-7/8 | 2-5/8 | 6-5/8 |
| 4 | 16 | 3/4 | 4-1/2 | 1/2 | 5/8 | 1-11/16 | 1 | 1-3/16 | 3/16 | 3/4 | 1/2-13 | 2.243 | 2-1/16 | 1.10 | 3-7/16 | 4-7/8 | 2-5/8 | 6-5/8 |
