Double End Mounting Style K for 2MNR Series Tie Rod Cylinders | Parker
|
|

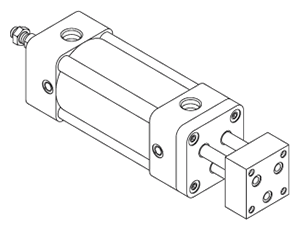

Three rods with tooling plate one end.
Single rod on the opposite end.

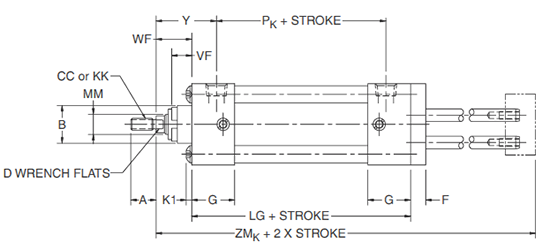

Style K
| Bore Size |
Rod # | Rod Dia. MM | Thread Style 8 CC |
Thread style 4 & 9 KK |
A |
B +.000 -.002 |
C | D | F |
G | H | K1 | VF | WF | Y |
| 1-1/2 | 1 | 5/8 | 1/2-20 | 7/16-20 | 3/4 | 1.124 | 3/4 | 1/2 | 3/8 | 1-7/16 | 3/4 | 1/8 | 5/8 | 1 | 1-7/8 |
| 2 | 1 | 5/8 | 1/2-20 | 7/16-20 | 3/4 | 1.124 | 3/4 | 1/2 | 3/8 | 1-7/16 | 3/4 | 5/32 | 5/8 | 1 | 1-7/8 |
| 2-1/2 | 1 | 5/8 | 1/2-20 | 7/16-20 | 3/4 | 1.124 | 3/4 | 1/2 | 3/8 | 1-7/16 | 1 | 5/32 | 5/8 | 1 | 1-15/16 |
| 3-1/4 | 1 | 1 | 7/8-14 | 3/4-16 | 1-1/8 | 1.499 | 3/4 | 7/8 | 5/8 | 1-11/16 | 1 | 3/16 | 3/4 | 1-3/8 | 2-7/16 |
| 4 | 1 | 1 | 7/8-14 | 3/4-16 | 1-1/8 | 1.499 | 3/4 | 7/8 | 5/8 | 1-11/16 | 1 | 3/16 | 3/4 | 1-3/8 | 2-7/16 |
| Bore Size |
LG | SSK | SNK | PK | ZMK | ZMR |
| 1-1/2 | 4-1/8 | 3-3/8 |
2-1/4 |
2-3/8 |
7 | 7-7/8 |
| 2 | 4-1/8 | 3-3/8 | 2-1/4 | 2-3/8 | 7 | 7-7/8 |
| 2-1/2 | 4-1/4 | 3-1/2 | 2-3/8 | 2-3/8 | 7-3/8 | 8-1/2 |
| 3-1/4 | 4-3/4 | 3-3/4 | 2-5/8 | 2-5/8 | 8-1/2 | 9-1/2 |
| 4 | 4-3/4 | 3-3/4 | 2-5/8 | 2-5/8 | 8-1/2 | 9-1/2 |

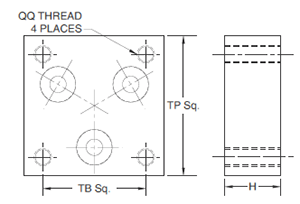

Standard Tooling Plate - Style T
|
Bore Size |
H | TB | TP | |
| 1-1/2 | 3/4 | 10-32 | 1.12 | 1-1/2 |
| 2 | 3/4 | 1/4-28 | 1.43 | 2 |
| 2-1/2 | 1 | 5/16-24 | 1.84 | 2-1/2 |
| 3-1/4 | 1 | 3/8-24 | 2.19 | 3-1/4 |
| 4 | 1 | 3/8-24 | 2.76 | 4 |
