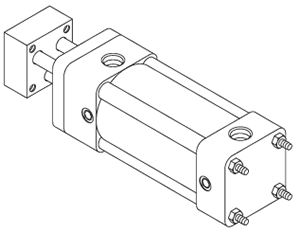

Tie Rods Extend Cap End Mounting Style TC for 2MNR Series Tie Rod Cylinders | Parker
|
|
  |

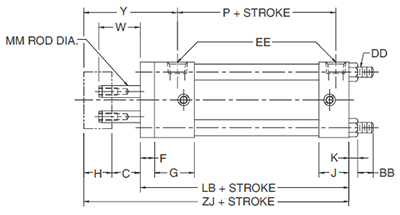

Style TC
| Bore Size |
Rod Dia. MM | BB | C |
DD | E |
EE (NPTF) |
F | G | H |
J | K | R | W | Y | LB | P | ZJ |
| 1-1/2 | 8 | 1 | 3/4 | 1/4-28 | 2 | 1/4 | 3/8 | 1-7/16 | 3/4 | 15/16 | 1/4 | 1.43 | 1.10 | 2-3/4 | 4 | 2-5/16 | 5-1/2 |
| 2 | 12 | 1-1/8 | 3/4 | 5/16-24 | 2-1/2 | 1/4 | 3/8 | 1-7/16 | 3/4 | 15/16 | 5/16 | 1.84 | 1.10 | 2-3/4 | 4 | 2-5/16 | 5-1/2 |
| 2-1/2 | 16 | 1-1/8 | 3/4 | 5/16-24 | 3 | 3/8 | 3/8 | 1-7/16 | 1 | 15/16 | 5/16 | 2.19 | 1.35 | 3-1/16 | 4-1/8 | 2-3/8 | 5-7/8 |
| 3-1/4 | 16 | 1-3/8 | 3/4 | 3/8-24 | 3-3/4 | 1/2 | 5/8 | 1-11/16 | 1 | 1-3/16 | 3/8 | 2.76 | 1.10 | 3-7/16 | 4-7/8 | 2-5/8 | 6-5/8 |
| 4 | 16 | 1-3/8 | 3/4 | 3/8-24 | 4-1/2 | 1/2 | 5/8 | 1-11/16 | 1 | 1-3/16 | 3/8 | 3.32 | 1.10 | 3-7/16 | 4-7/8 | 2-5/8 | 6-5/8 |
